3D LED Flex 200 IP66 System

Prize(s) Honorable Mentions
Company Radiant Architectural Lighting
Lead Designers Jonathan Morgan
Other Designer's names David Morgan
Client Various
Project Link View
Company Link View
Entry Description

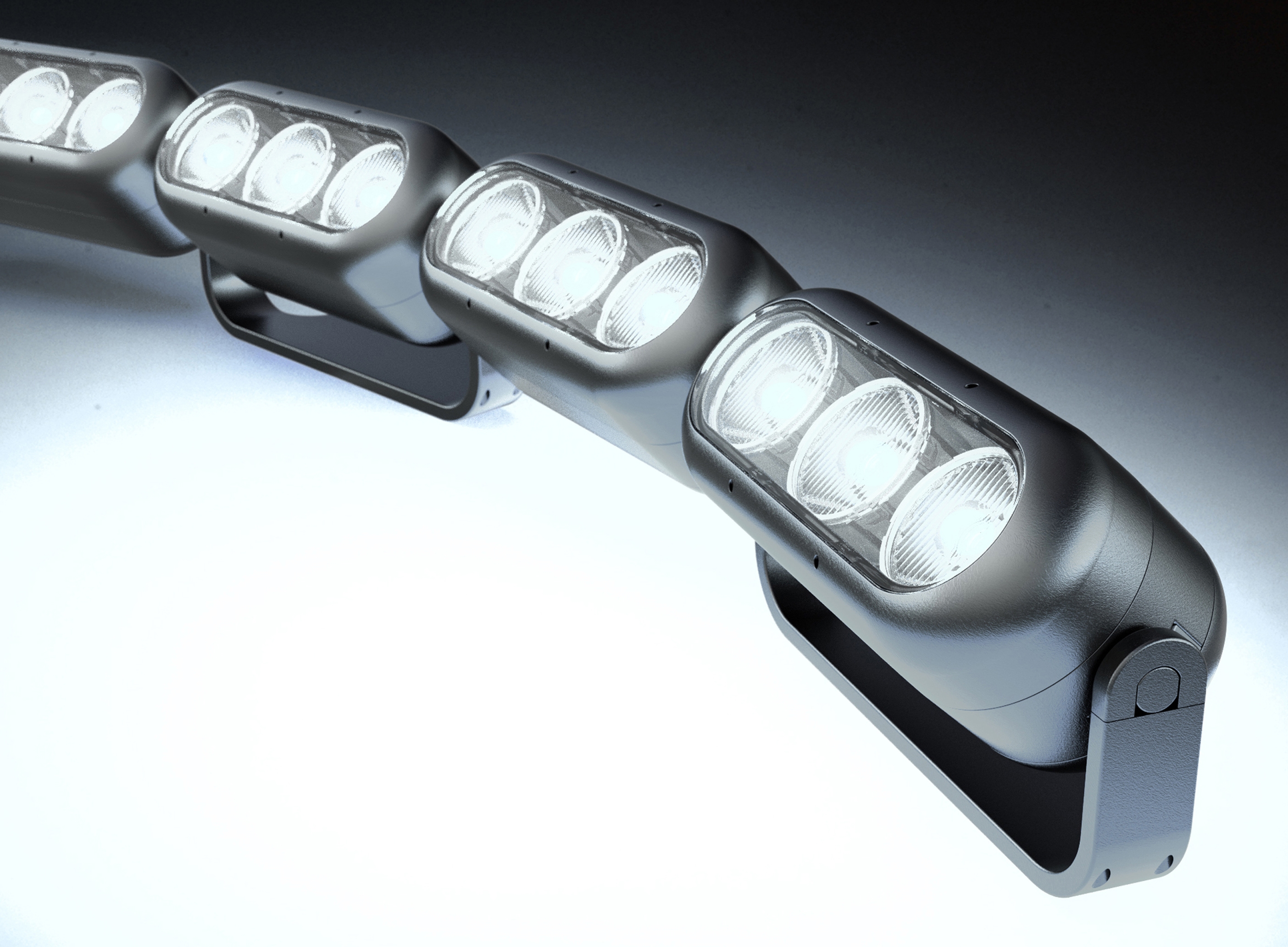

The 3D LED Flex 200 IP66 system has been developed for use in a wide variety of large-scale lighting projects requiring wall-grazing and wall-wash lighting where the building surfaces are non-linear with curved profiles and facades.

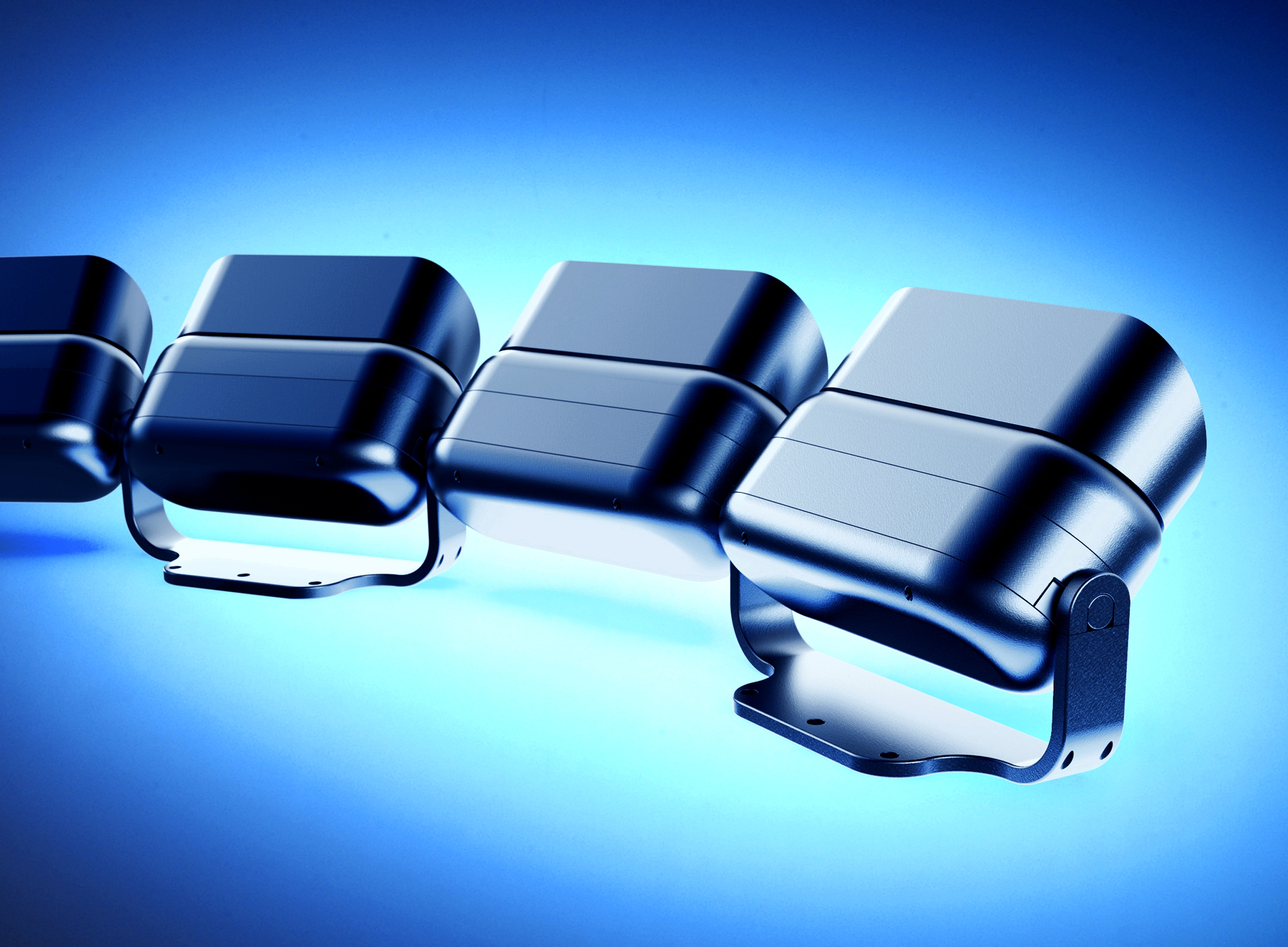

The system can bend and twist in 3 dimensions thanks to the patented articulated friction ball-joint system linking the modules. This hand-bendable flexibility allows it to follow complex curved building profiles – perfect for lighting columns, domes or any other curved architectural features.
The latest and largest addition to the range, the 3D LED Flex 200 can be run at up to 125 Watts per Mtr, providing up to 11,000 Lumens per Mtr when using 3000K 80CRI white-light LEDs.

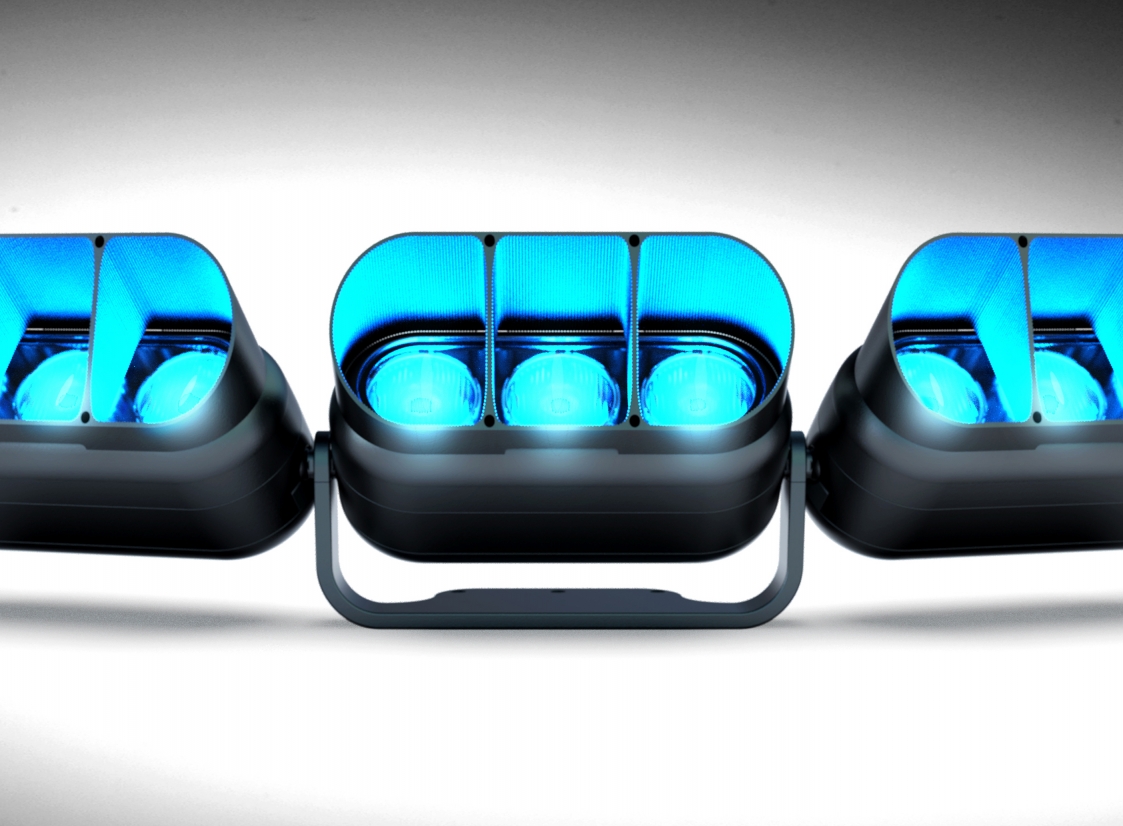

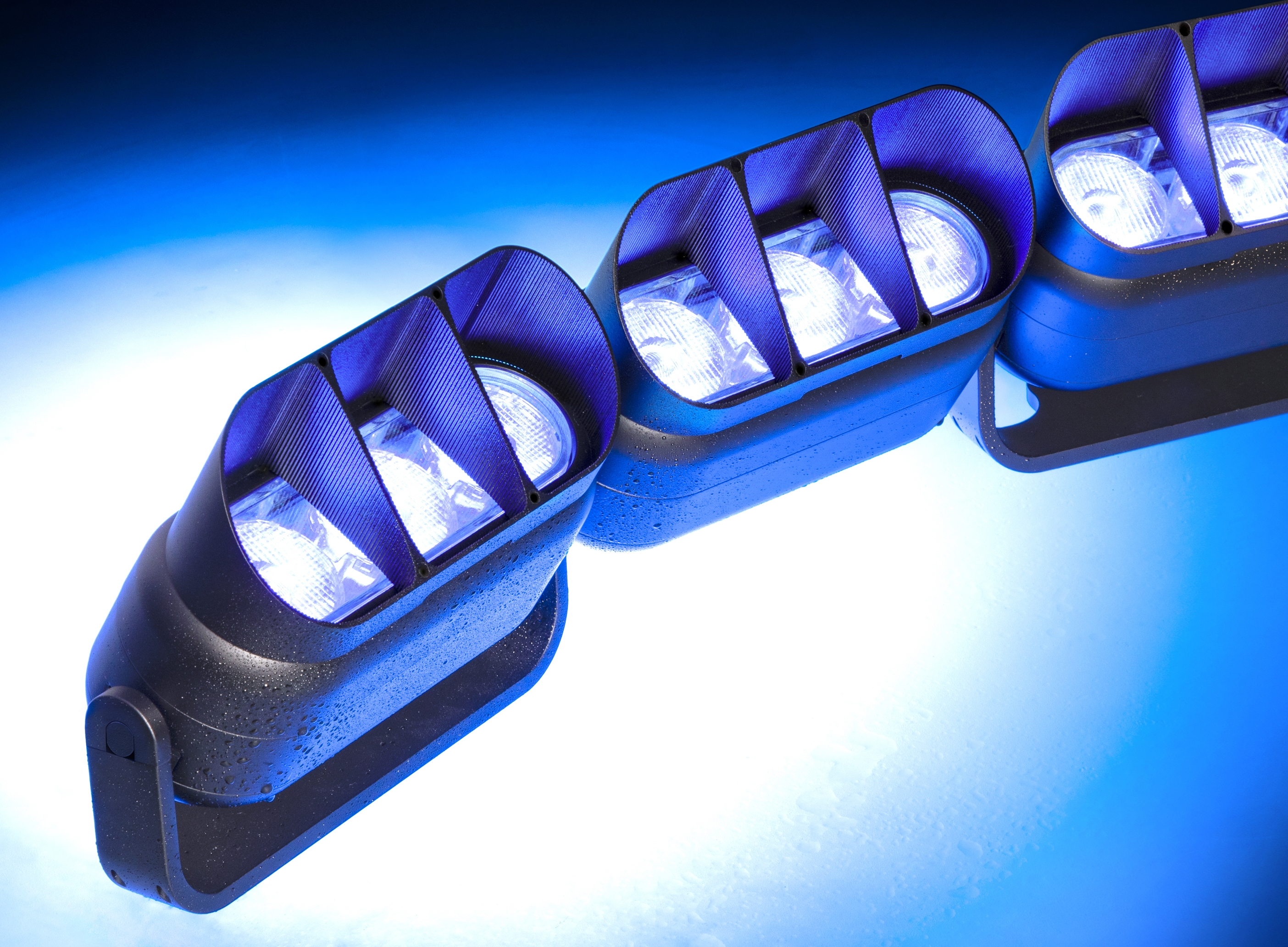

Each 200mm long module comprises of 3 x clusters of 4 x Luxeon-CZ LEDs with highly efficient Gaggione colour-blending lenses. The lens system includes ultra-narrow 2-degree beam and elliptical beam options, allowing highly controlled lighting effects to be achieved.

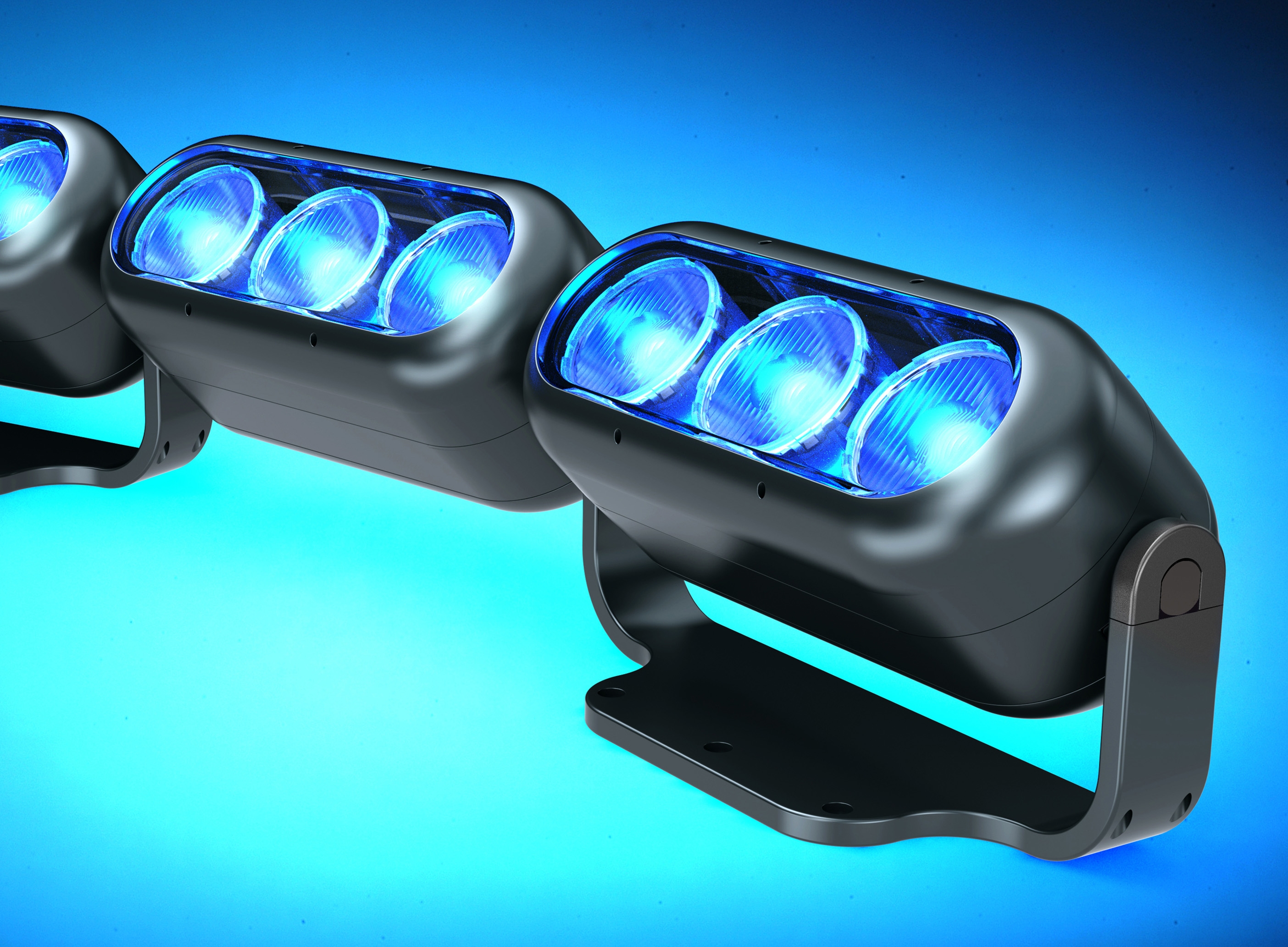

Each of the 4 LEDs in the LED clusters can be specified in any combination of RGBW, RGBA or white-light LED options.
Integral line voltage drivers are housed in the modules. Dimming options include 1-10V, DMX and DALI.
