Flaplight Ball-Joint System IP20

Lead Designers David Morgan

Entry Description

We’re excited to introduce a new flexible version of our Flaplight System.

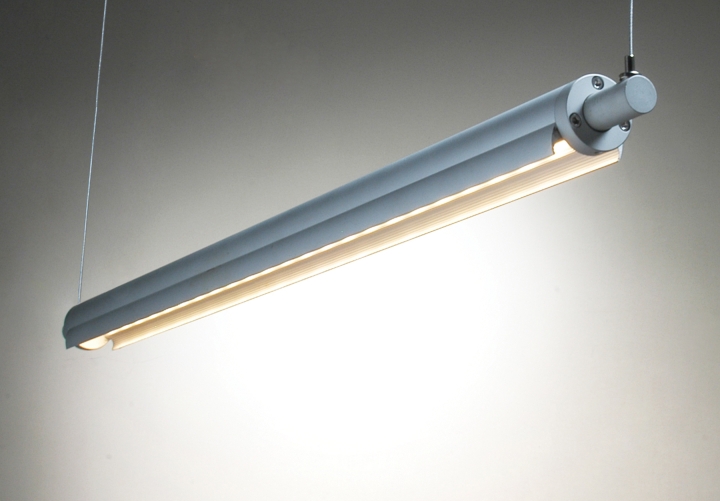

The Flaplight System can be configured as a picture-light, pendant, task-light, vertical free-standing luminaire, or wall-light. And now we’ve developed the Flaplight system as a flexible-linear system too.

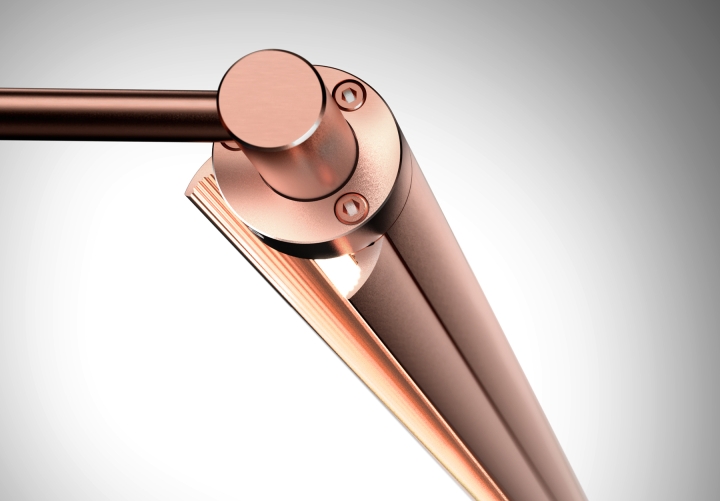

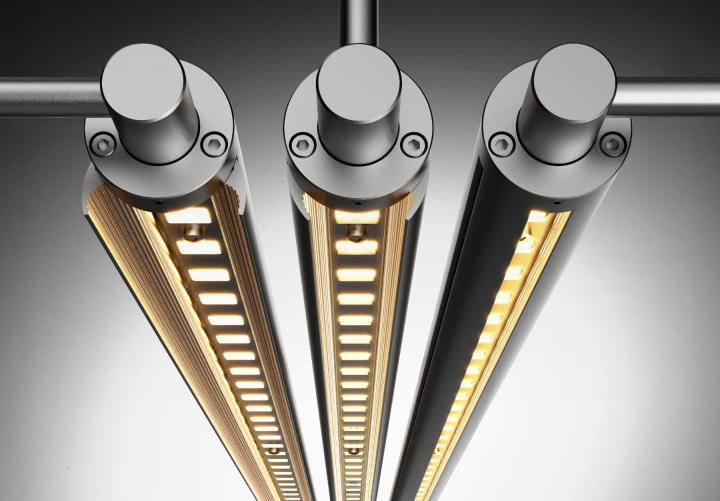

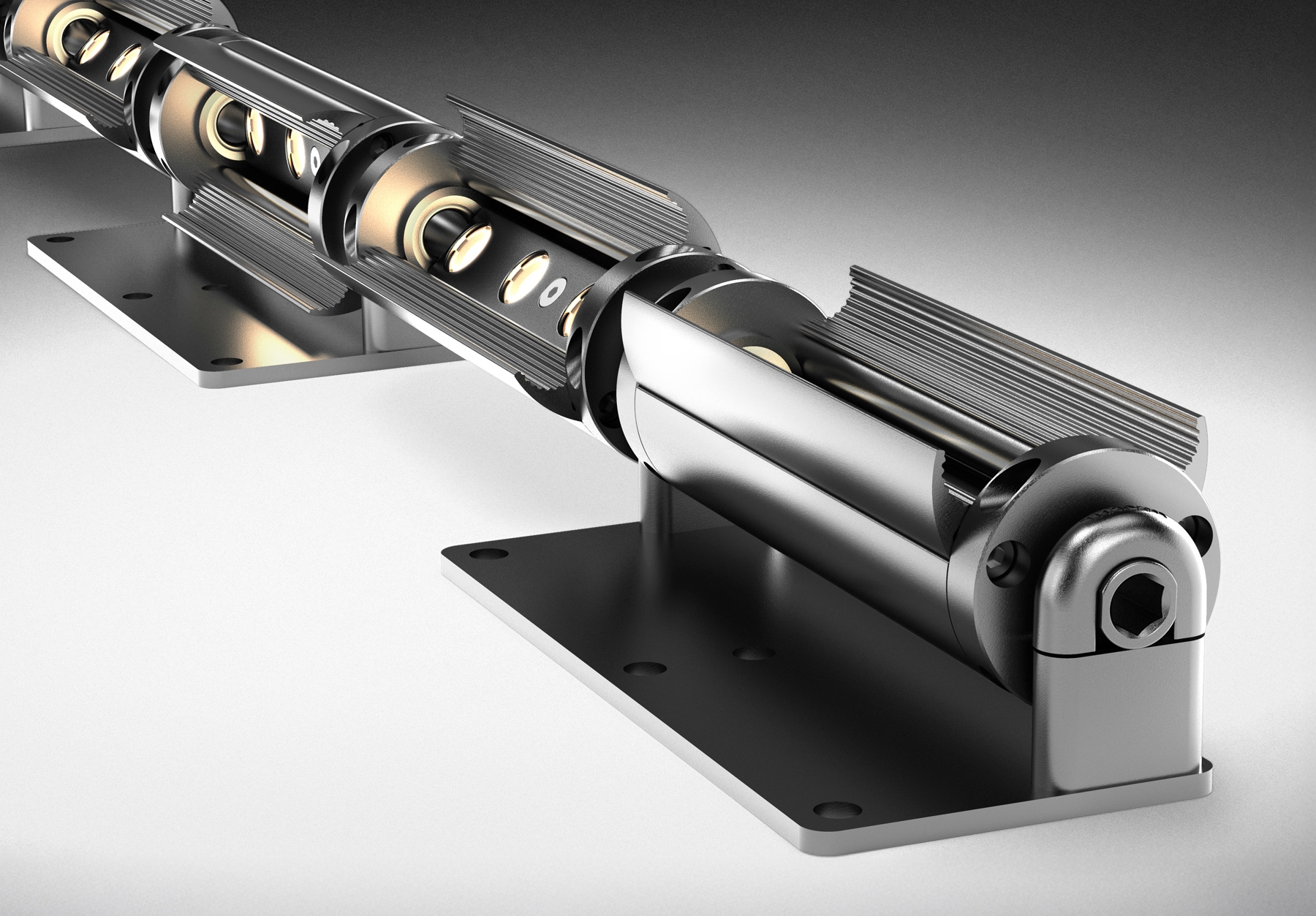

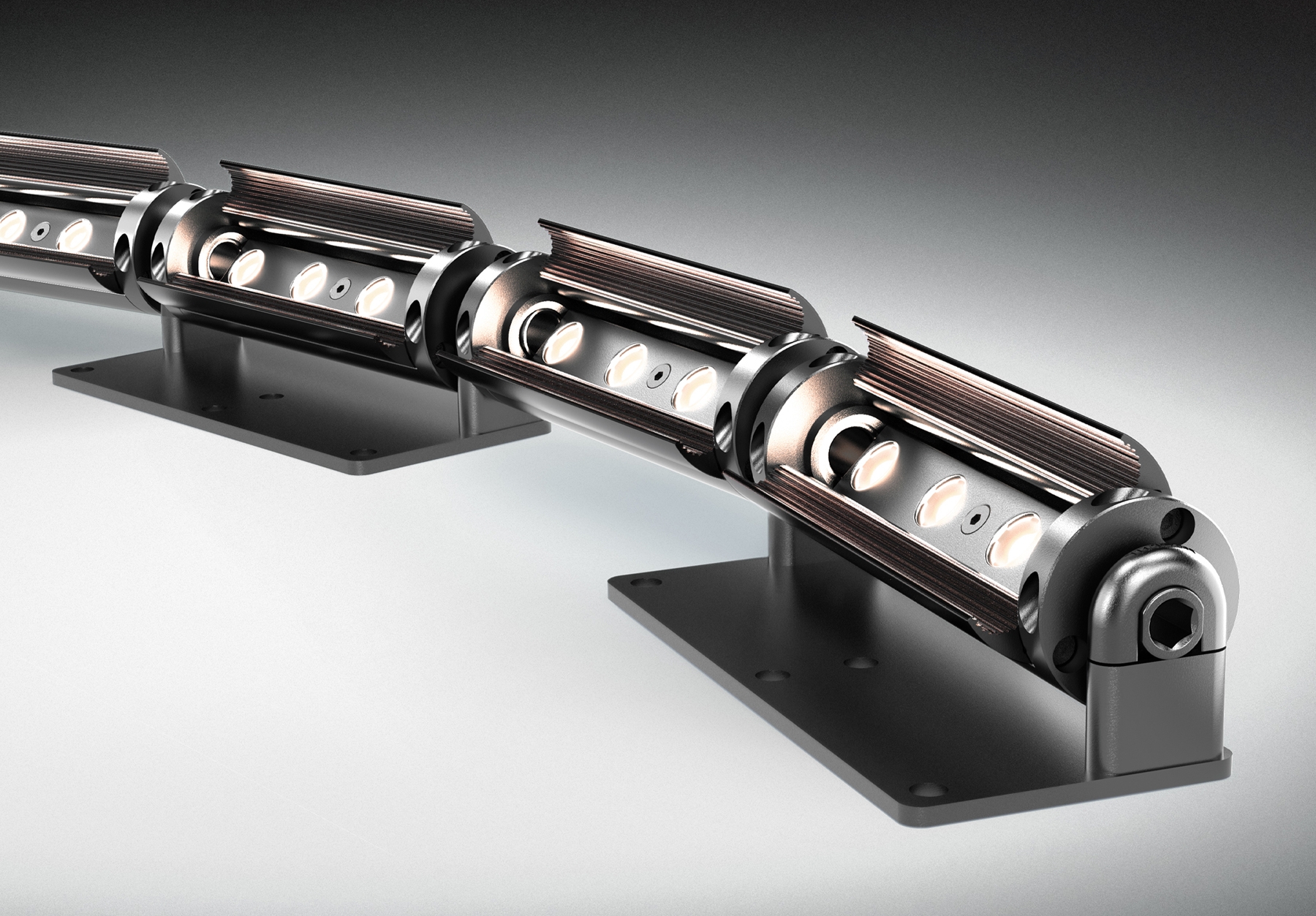

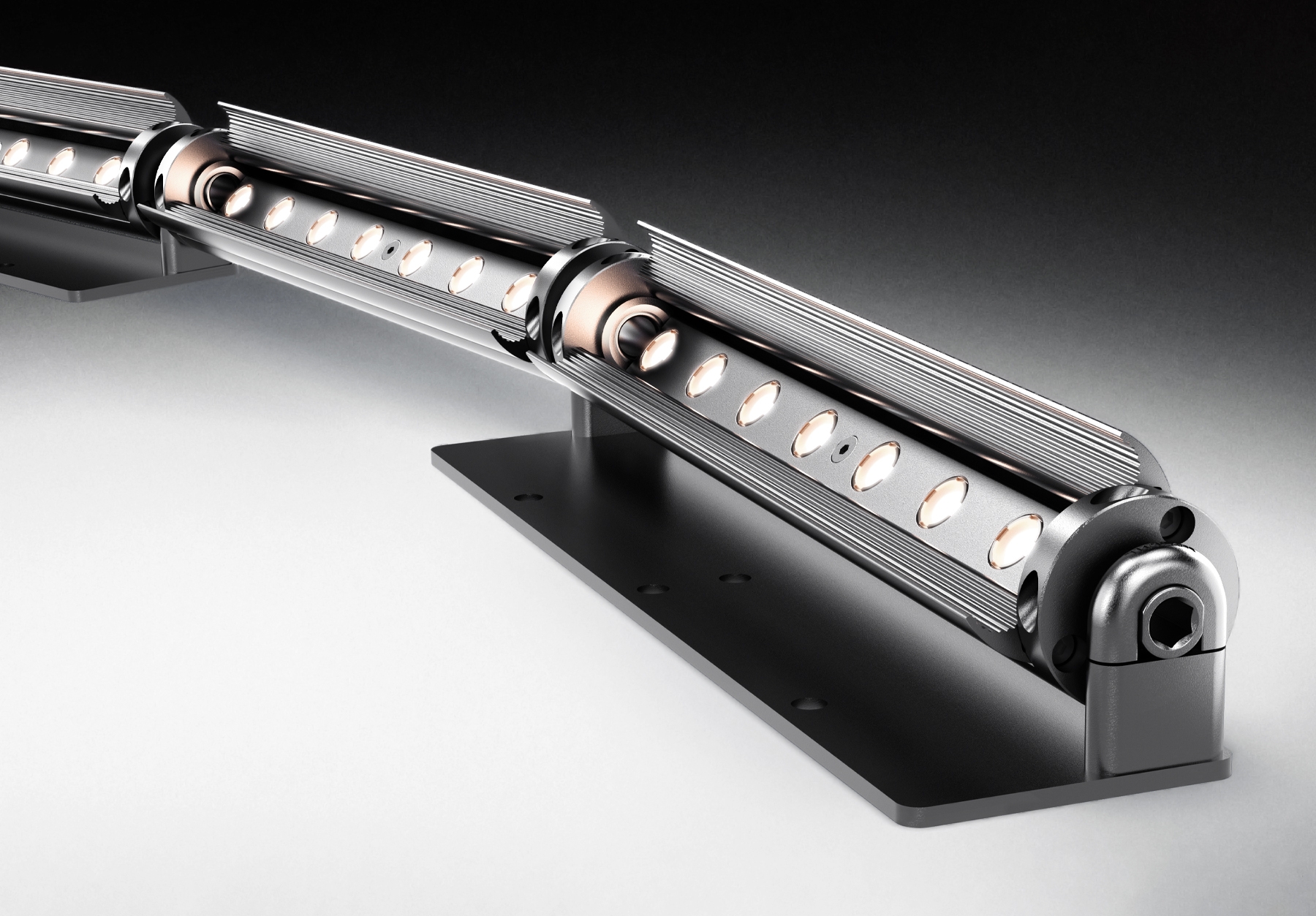

With the latest flexible version, a series of custom-length Flaplight modules are linked with our patented friction ball-joints, allowing for 3-dimensional flexibility. Lighting designers can specify the Flaplight system for a range of interior lighting projects – in fact, anywhere curved lines of light are needed. With this system, you can precisely illuminate non-linear building surfaces, columns, and domes because the body of each module can be rotated and locked at the correct aiming angle. The individual hinged barn-doors can be set to control glare and set the cut-off precisely.

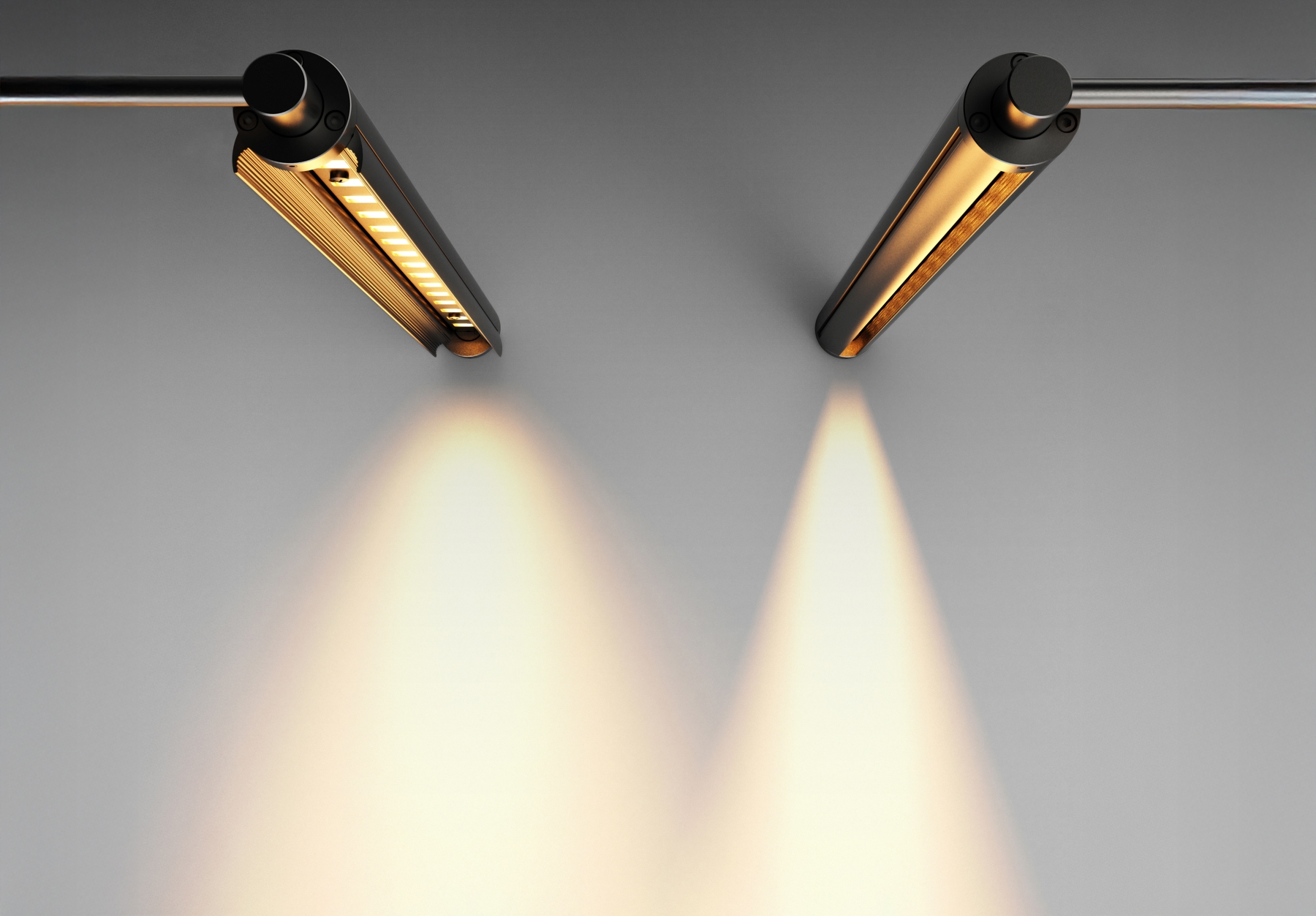

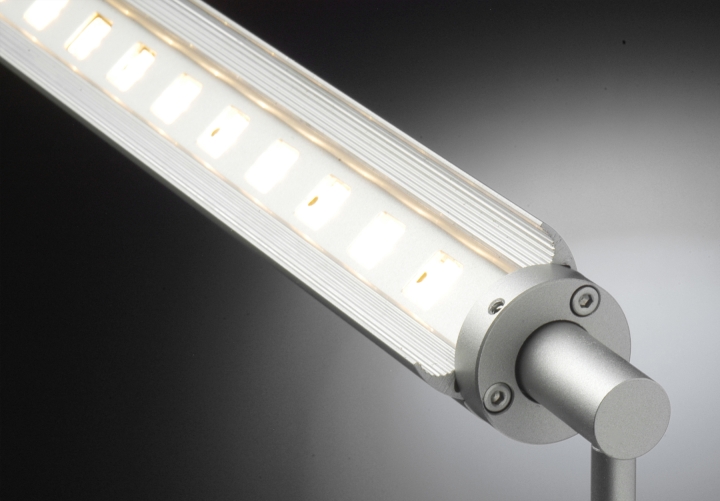

The System can be fitted with a variety of lenses to control the beam angle. A diffused version provides a soft wash light output.

A wide range of Anodized and powder-coat finishes are available. Bracketry and luminaire lengths can be customised to suit project requirements.

The Flaplight System can produce up to 3,000 Lumens per Mtr.

Sustainability Approach

We design our systems for a working life of up to 30 years including replacement of light engines and integral drivers. Traditional construction methods allow our systems to be easily disassembled. 95% of our components can be reused indefinitely.
Easy on-site replacement of light engines is a key element of the design of all new Radiant systems.
Almost all Radiant products use aluminium core PCBs that can be recycled at the end of their life.
The 3D LED Flex systems use pressure die cast aluminium heatsinks, which waste less material during production than machined components.
Our die castings are currently produced with up to 75% recycled aluminium material. We aim to use only 100% recycled cast aluminium within 2 years.
All Radiant systems come with a 5-year guarantee, with a refurbishment service thereafter.
A TM 66 analysis of each Radiant system can be prepared for your projects.

Company Description

Established in 2008 in London, Radiant Architectural Lighting provides innovative, award-winning solutions for leading lighting designers on projects around the world.

Bespoke products are what we do best, with many of our ‘standard’ products originating from specific project requests. Everything we create is made to order and is designed and produced in the UK.

With a strong heritage in luminaire design, Radiant excels in designing products for both interior and exterior application areas, to give lighting designers the perfect tools to illuminate and enhance architecture beautifully.
