Prize(s) Winners in Interactive Lighting Project
Company RDesign International Lighting
Lead Designers Guojian Hu
Other Designer's names Qiyin Jin&Yusong Li&Yaqian Ji&Xinyan Liang&Xi Xu&Youqiang Teng&Xiaohua Wu&Mengnian Zhao
Client Shanghai Jing'an Landscaping &City Appearance Administrative Bureau
Photo Credits Schranimage
Completion Date 30/09/2023
Project Location Shanghai

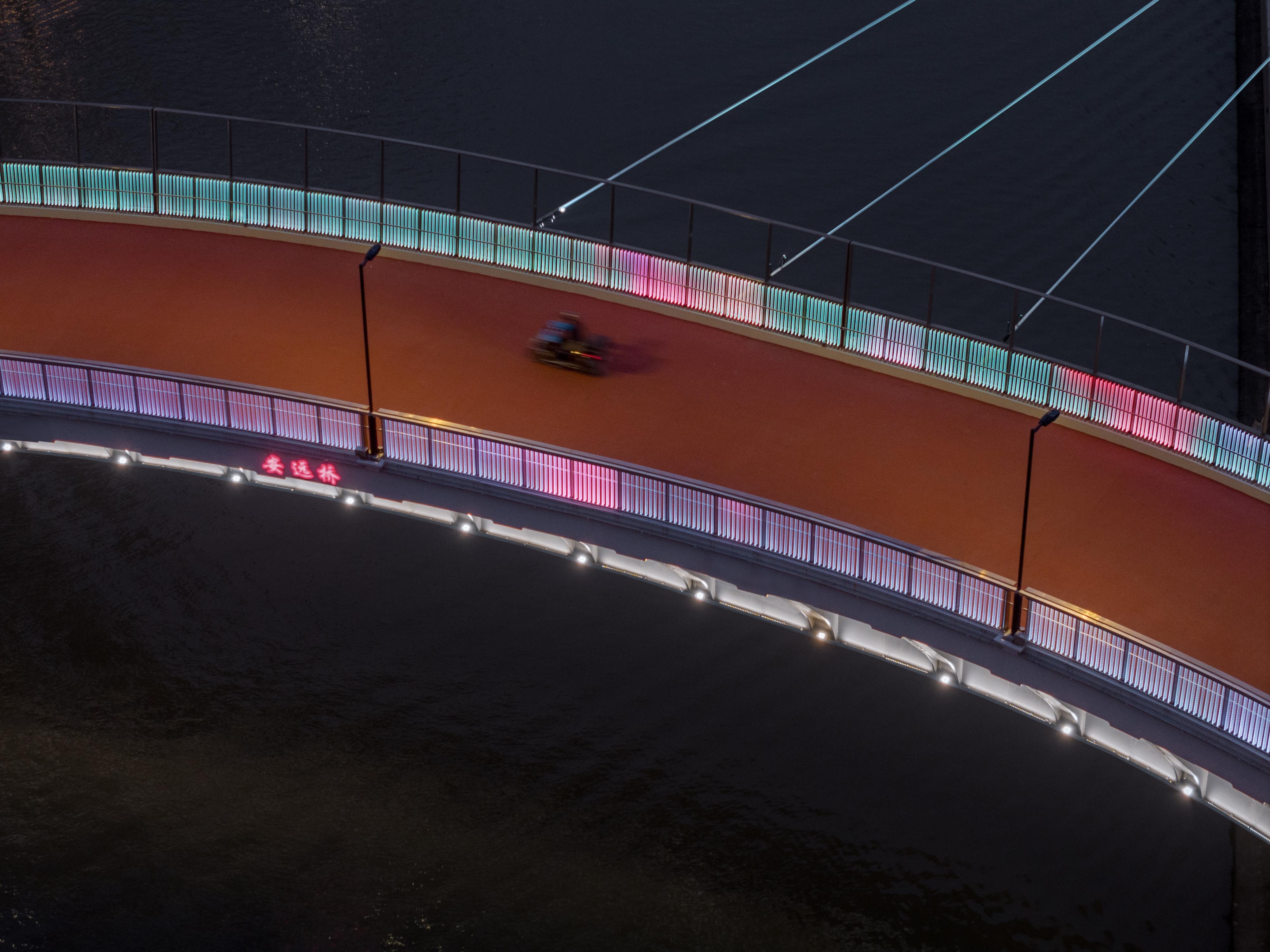

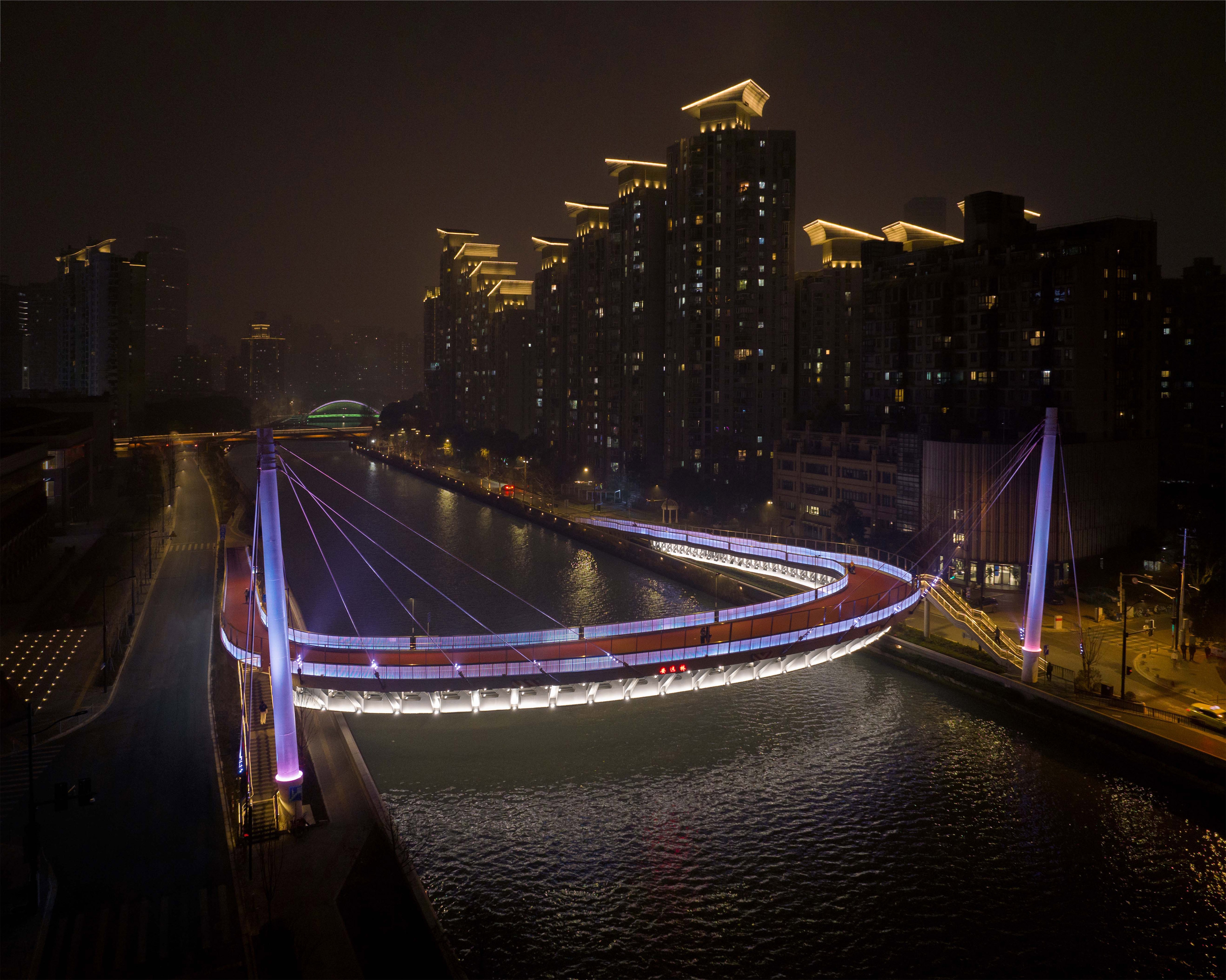

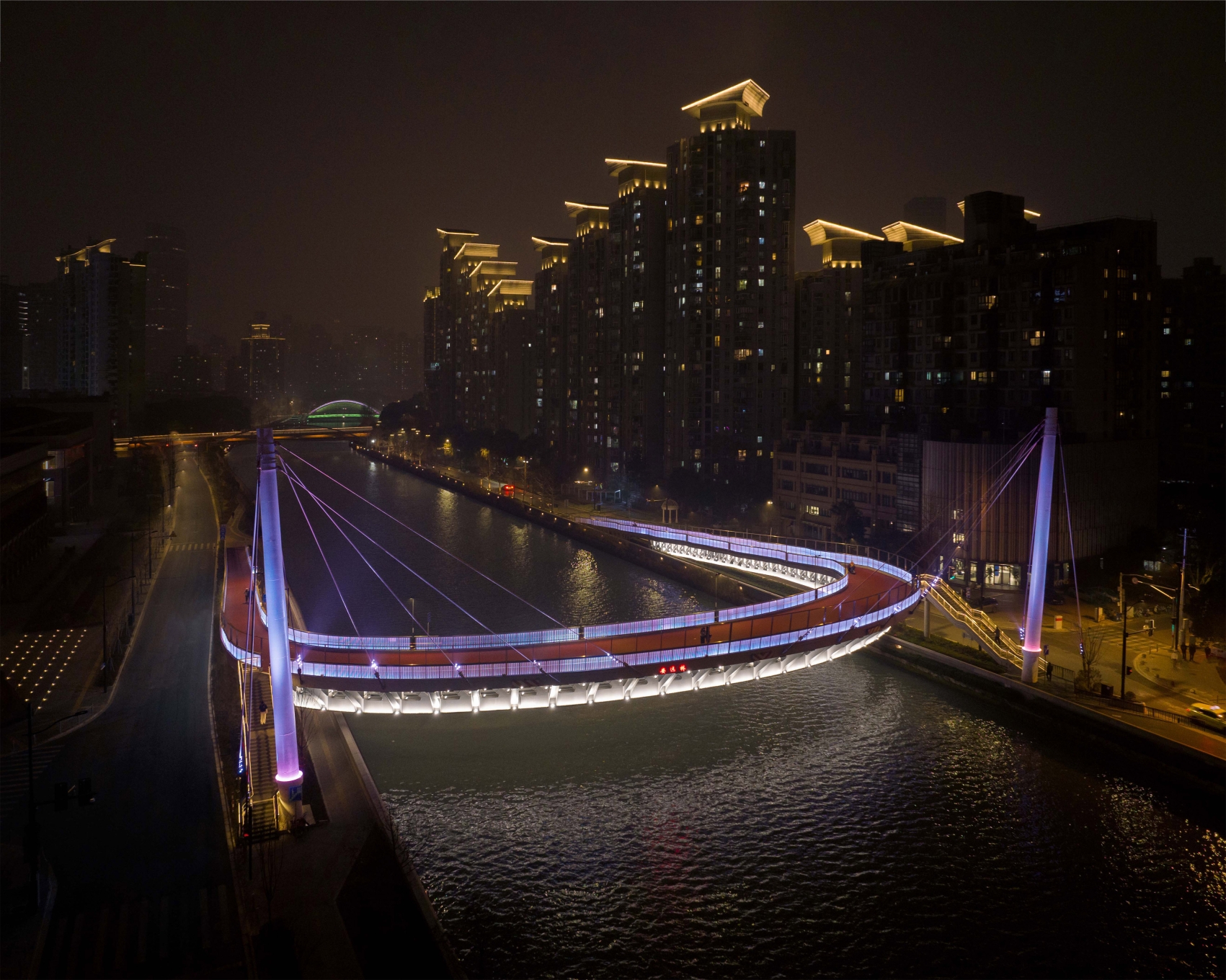

Entry DescriptionThe design team innovatively applied integrated resin luminous panels to the railing of the bridge to create a light band at night,like layers of gauze.The location and walking state of pedestrians are captured by the radar sensor,which are visualized in real time in dynamic effects,presented by the continuous luminous plates with the diversified season modes.The transparent characteristics of the resin luminous plate make the lighting effect can be viewed on both sides,pedestrians share the flow effect of the light, either on the bridge,along the river,or on the boat.
Concept

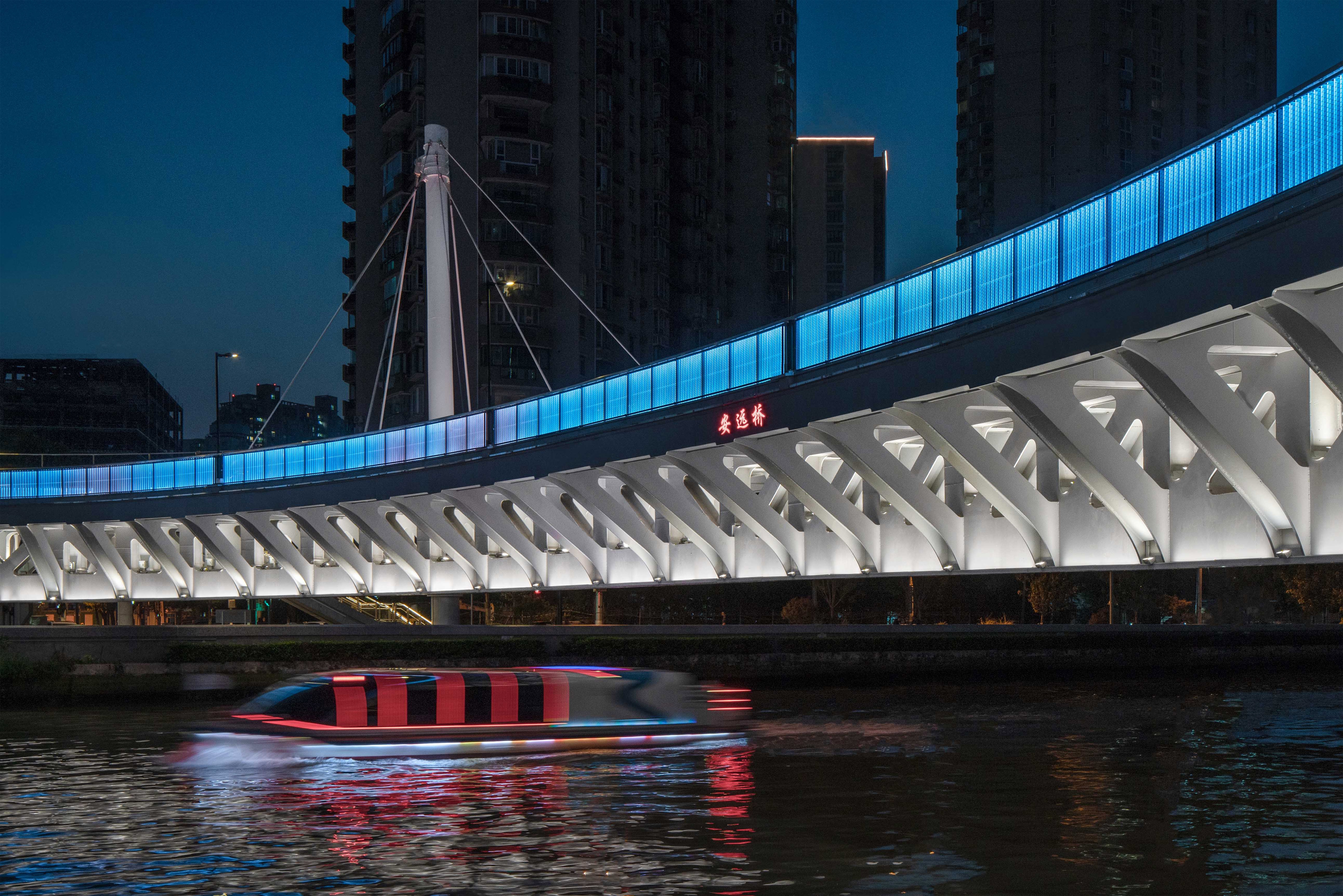

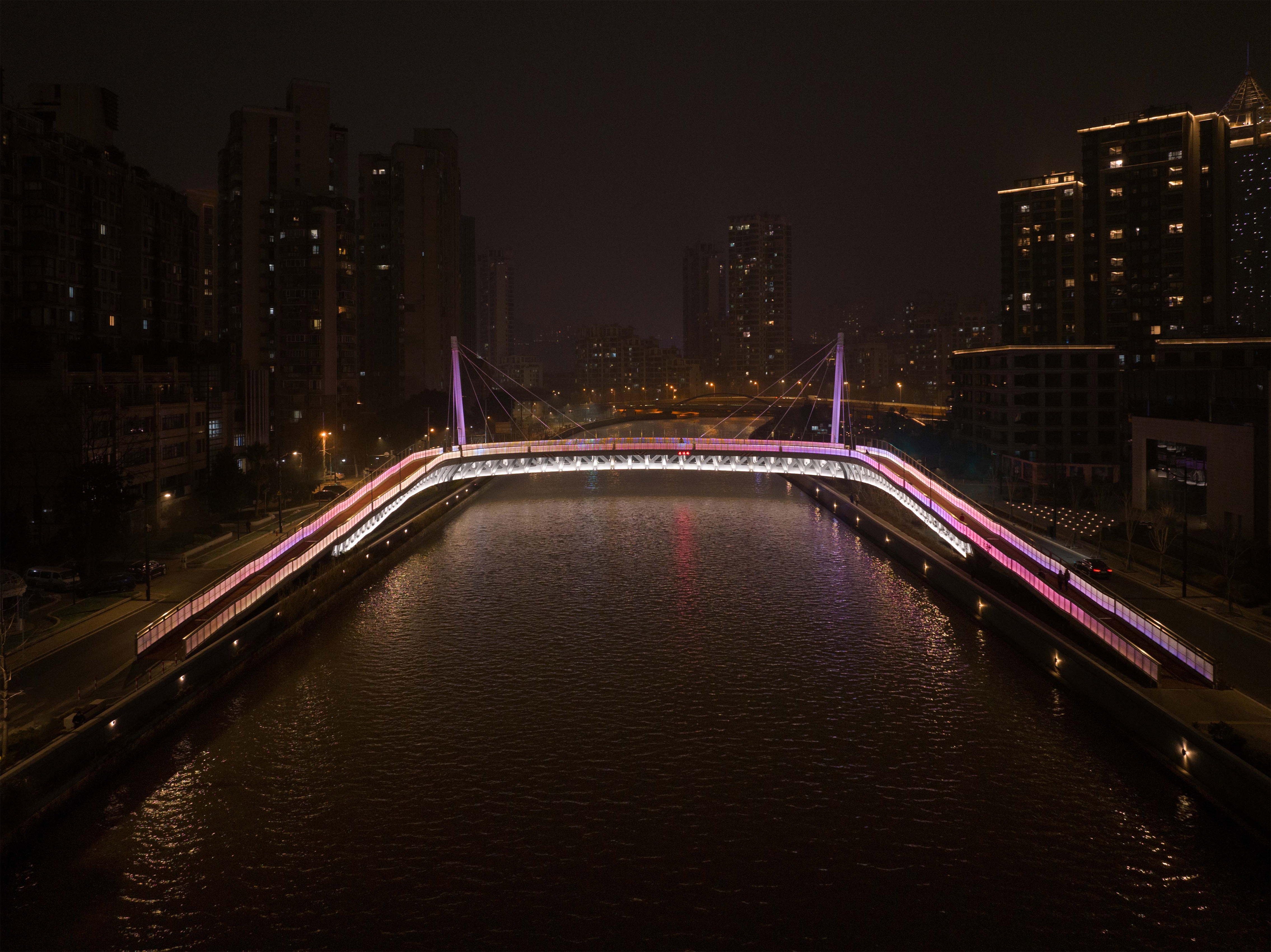

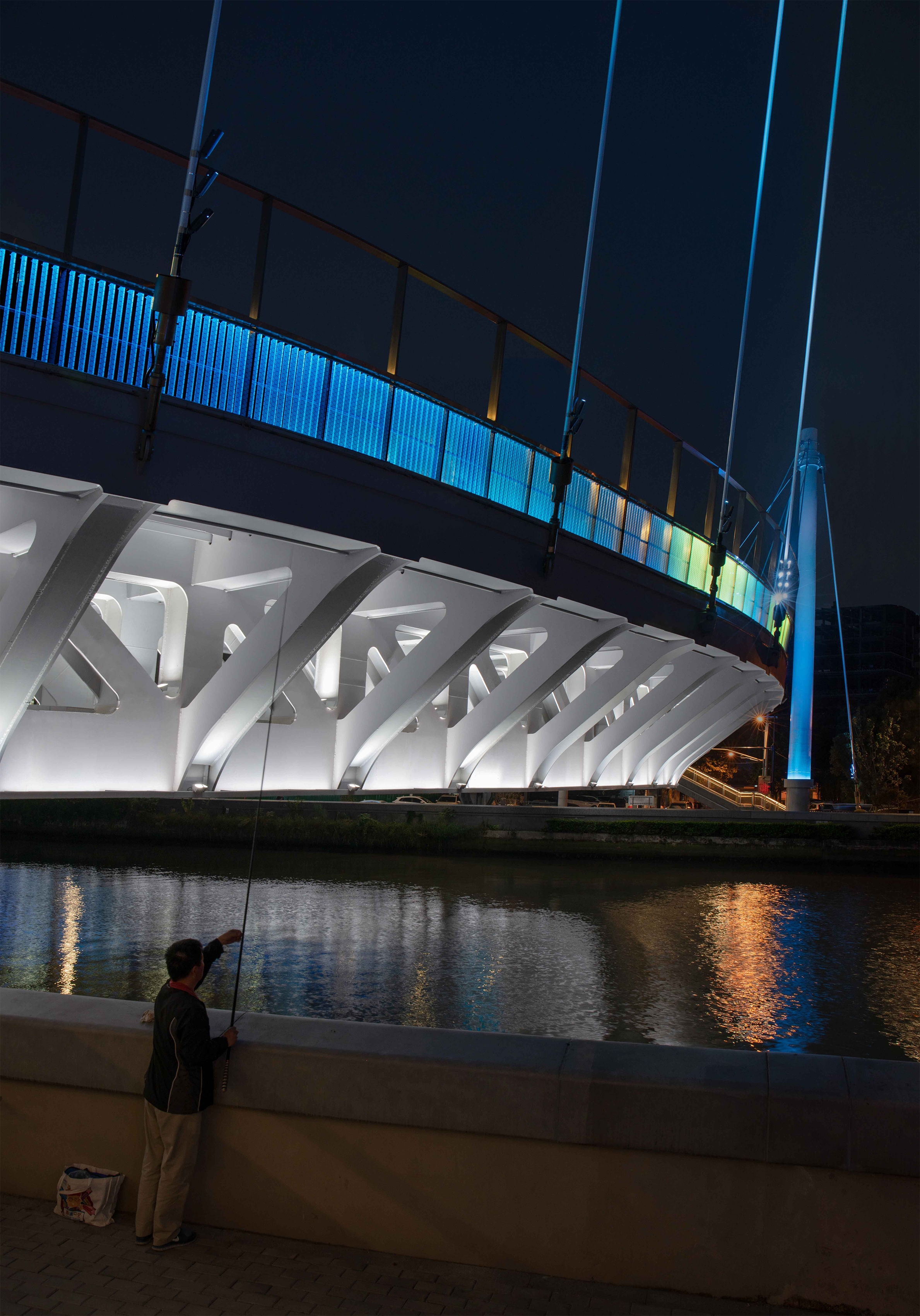

The theme is"flowing light rhyme shadow,complementing each other into fun", nicknamed"Magpie Bridge".The night view focuses on the structural beauty of the column cable,combined with the integrated resin luminous plate to show the color flowing light horizontally in the railing,like a thin silk string hanging a streamer necklace floating on the Suzhou River.
Science

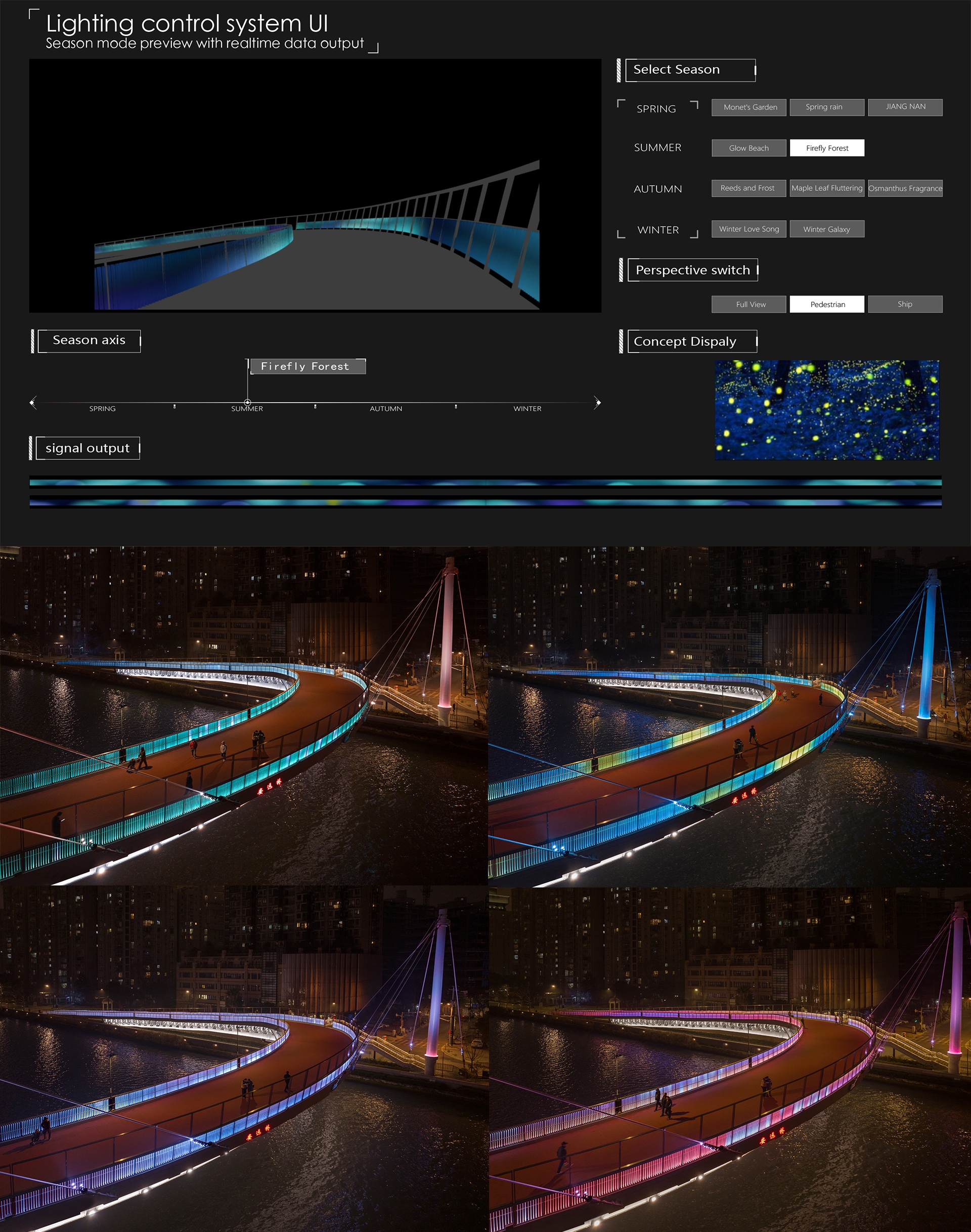

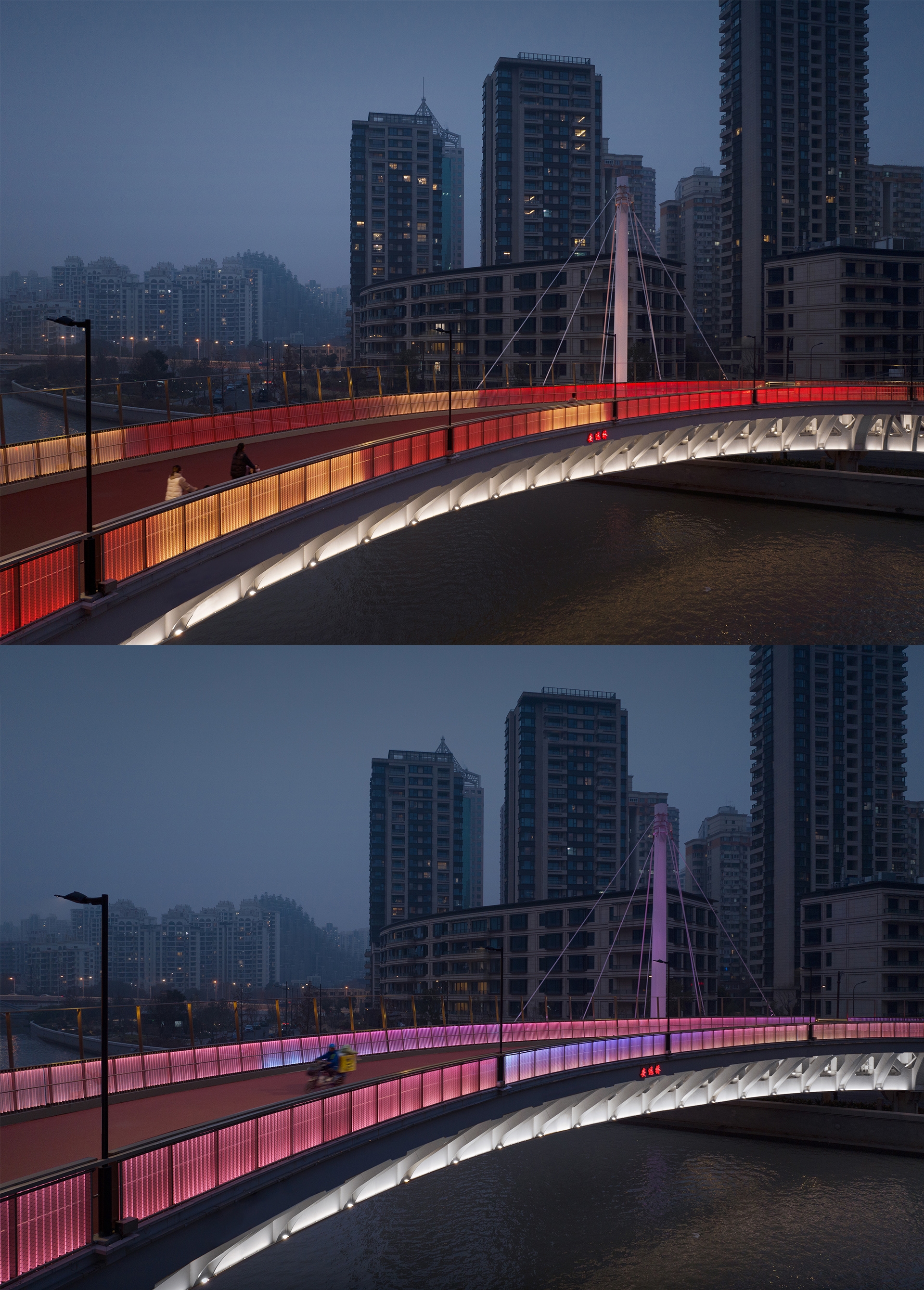

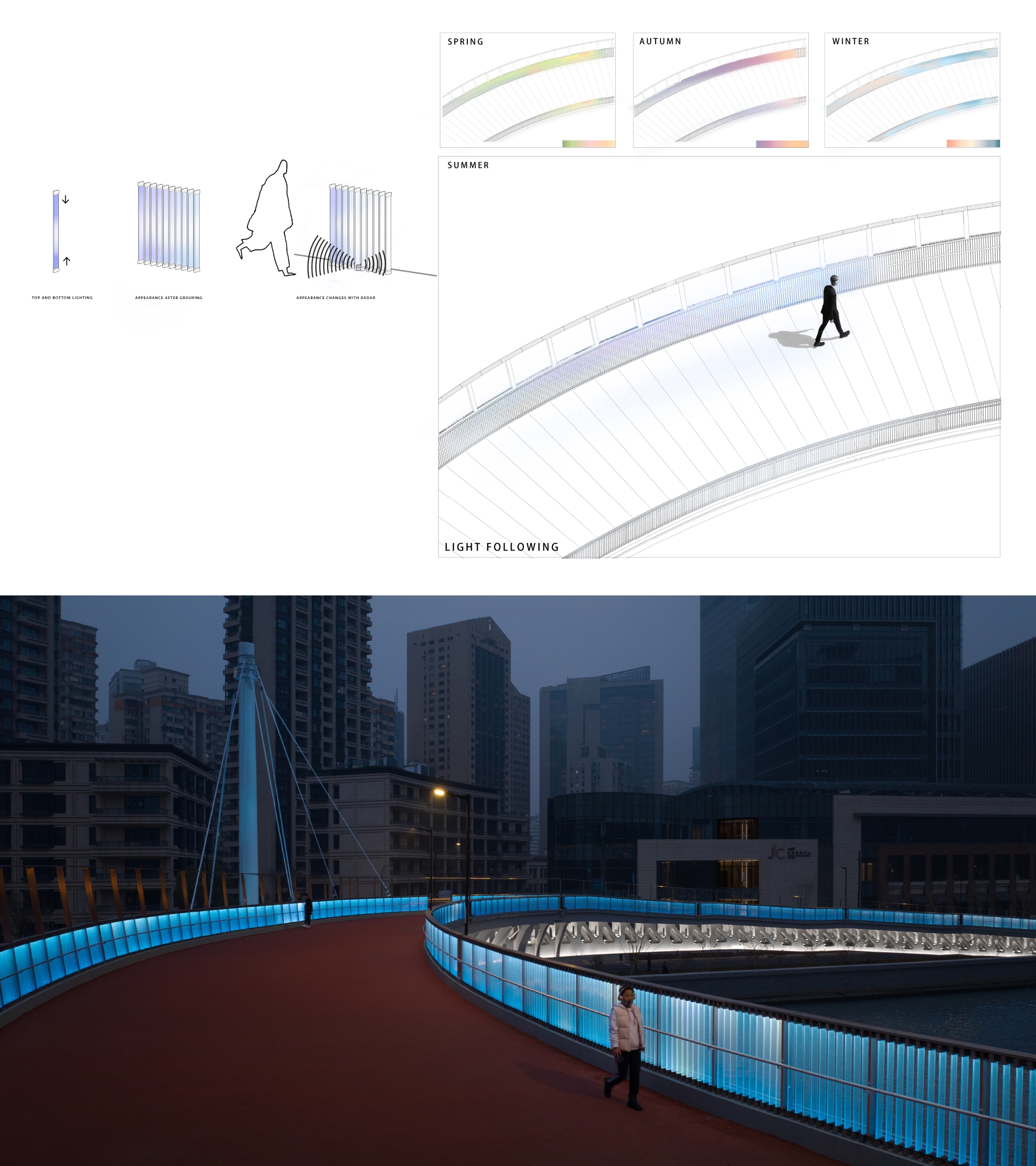

Through the multi-section control of linear lights integrated with resin luminous plates,the formation of horizontal color flow lights,showing a soft and advanced form of expression.Radar sensor devices are set on the bridge to capture the position and walking state of pedestrians,and present diversified dynamic effects according to the density of people and season modes.

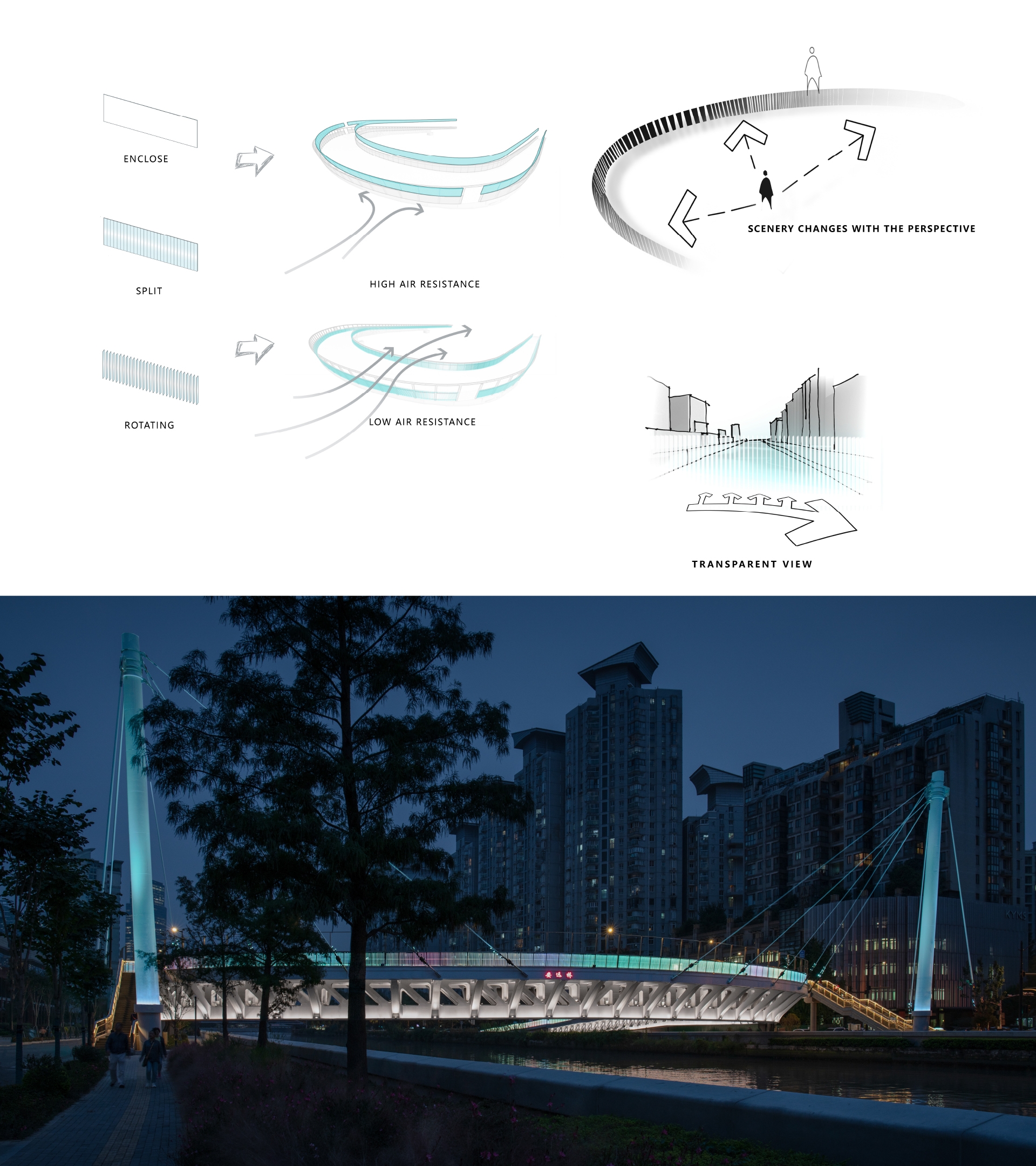

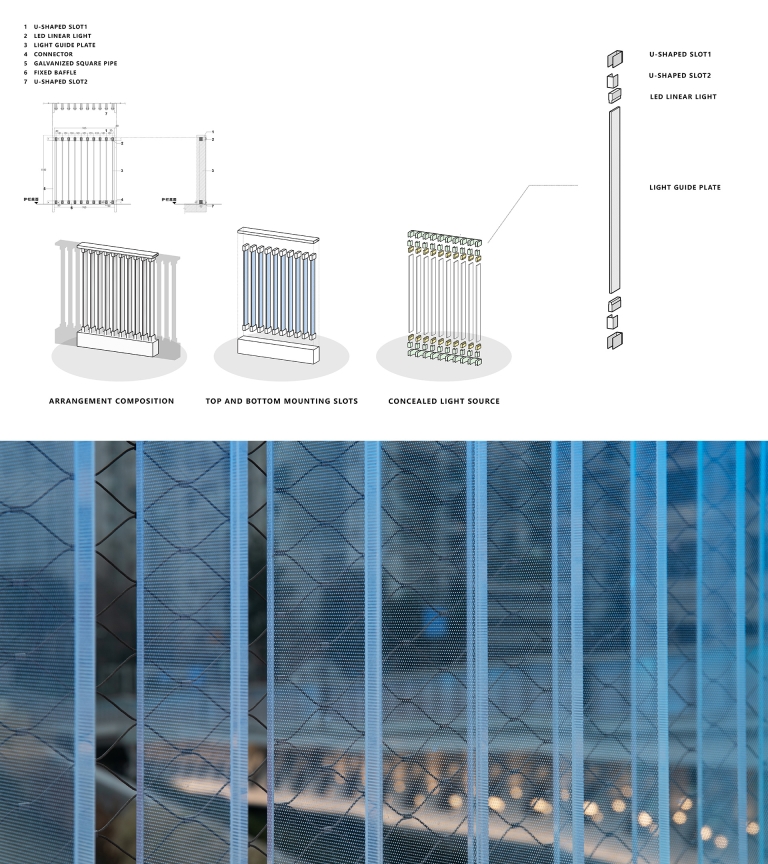

Sustainability ApproachIn order to solve the problem of large wind load of Suzhou River, the light guide plate is cut into a width of 10cm and installed perpendicular to the wind surface, so that the wind pressure area is reduced to less than 10%. Compared with glass, the weight of the special resin plate is only 1/3 of glass, which can reach the standard of 10-20 years without yellowing deformation.
Company DescriptionRDesign International Lighting is a global leading creative architectural consultancy company, founded in 2012 and has offices in Shanghai, Hong kong and New York. The completed projects by team were often honored internationally each year.
We provide lighting design services for projects in various fields, such as overall urban planning, high-rise complex building development, and customized art installation for transportation hubs, hotels and exhibitions.
