Star - Flower LED lighting lamp family

Prize(s) Winners in Designer/Custom Lighting
Company Medveczky & Gothárd Kft
Lead Designers Erzsébet Gothárd
Photo Credits Erzsébet Gothárd
Project Location Hungary, Budapest
Company Link View
Entry Description

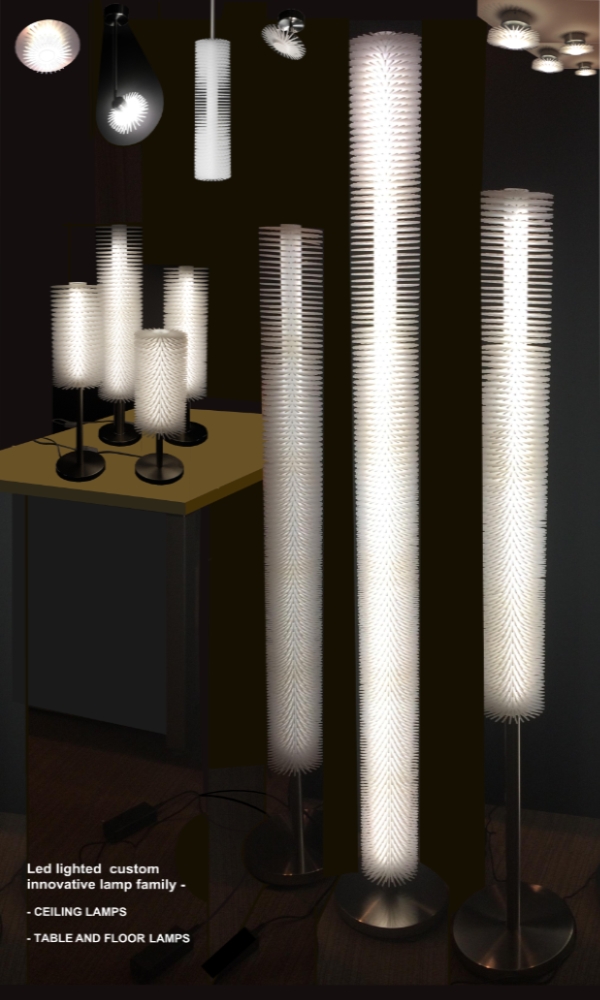

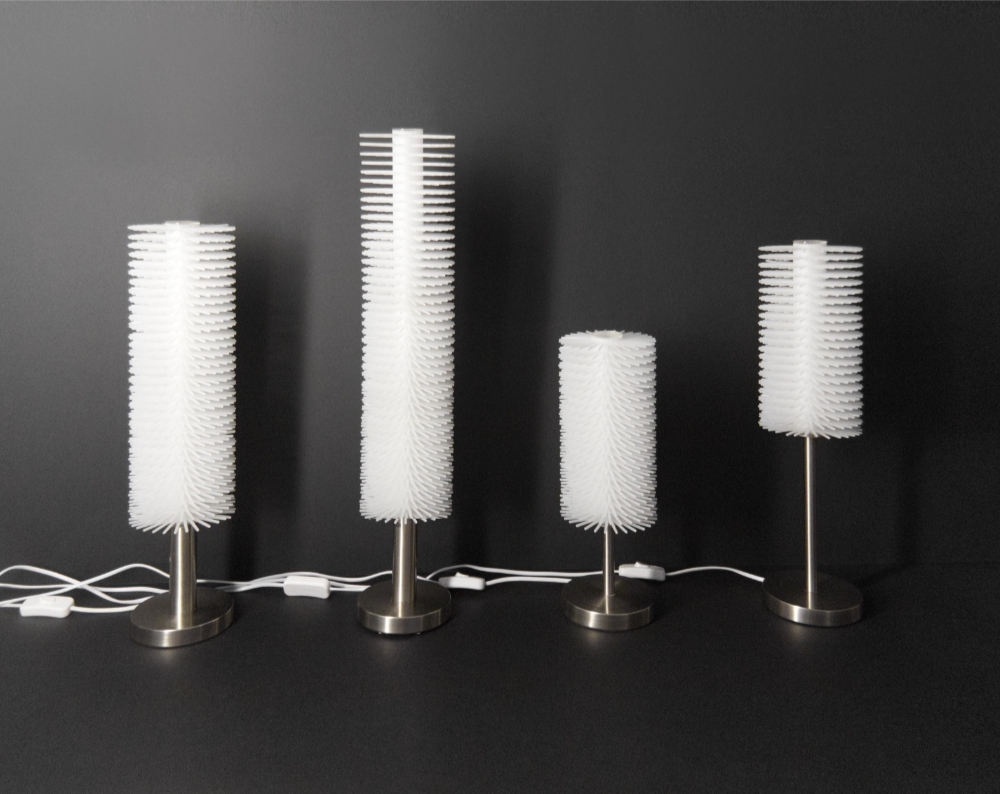

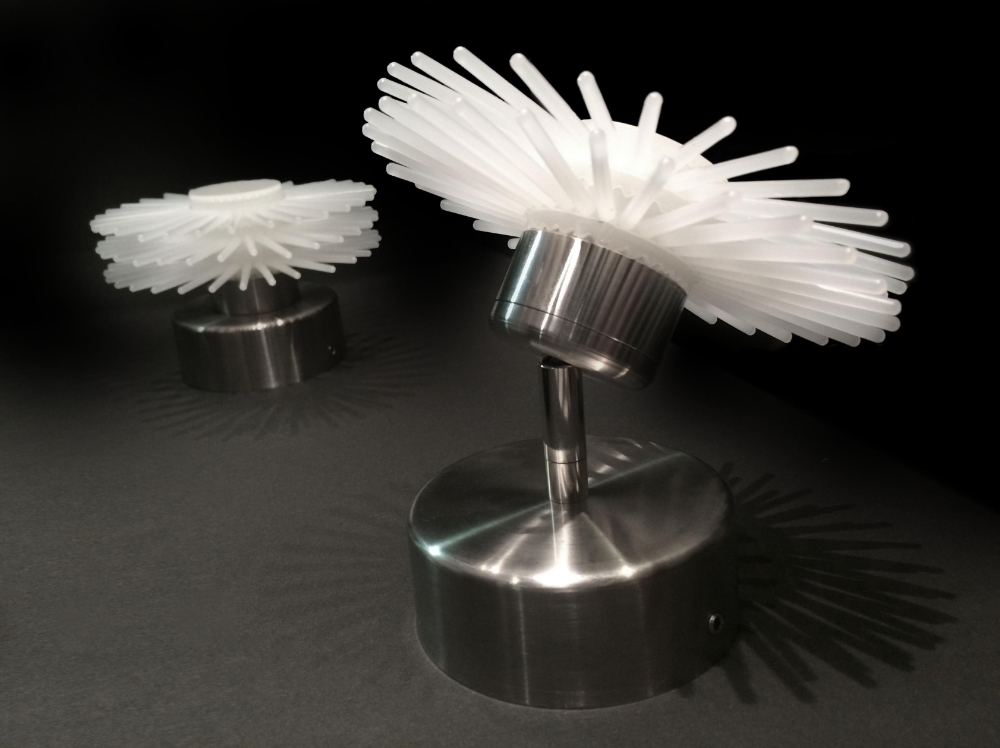

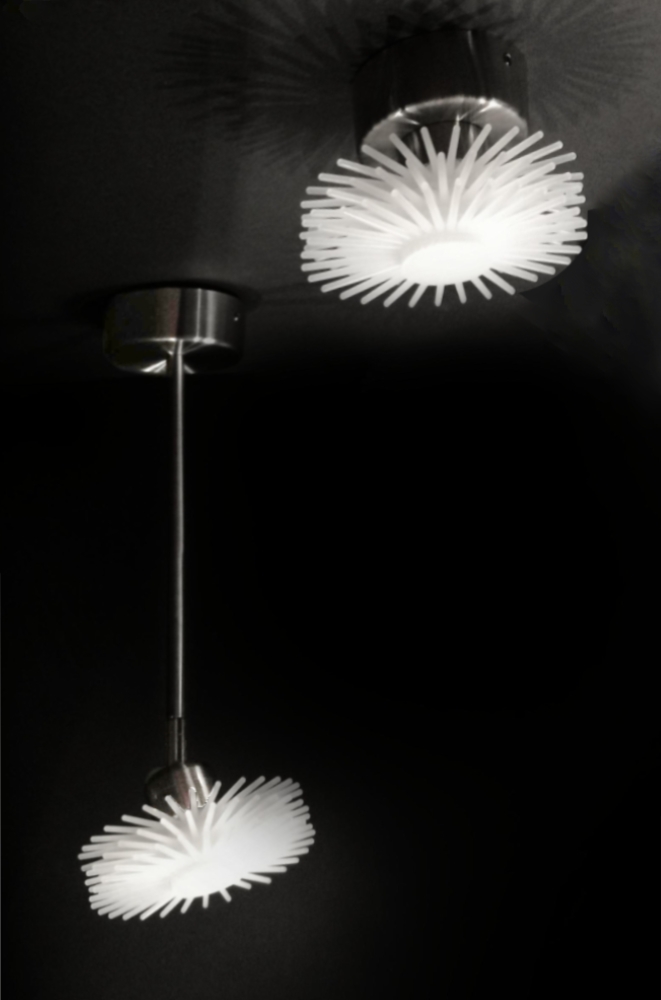

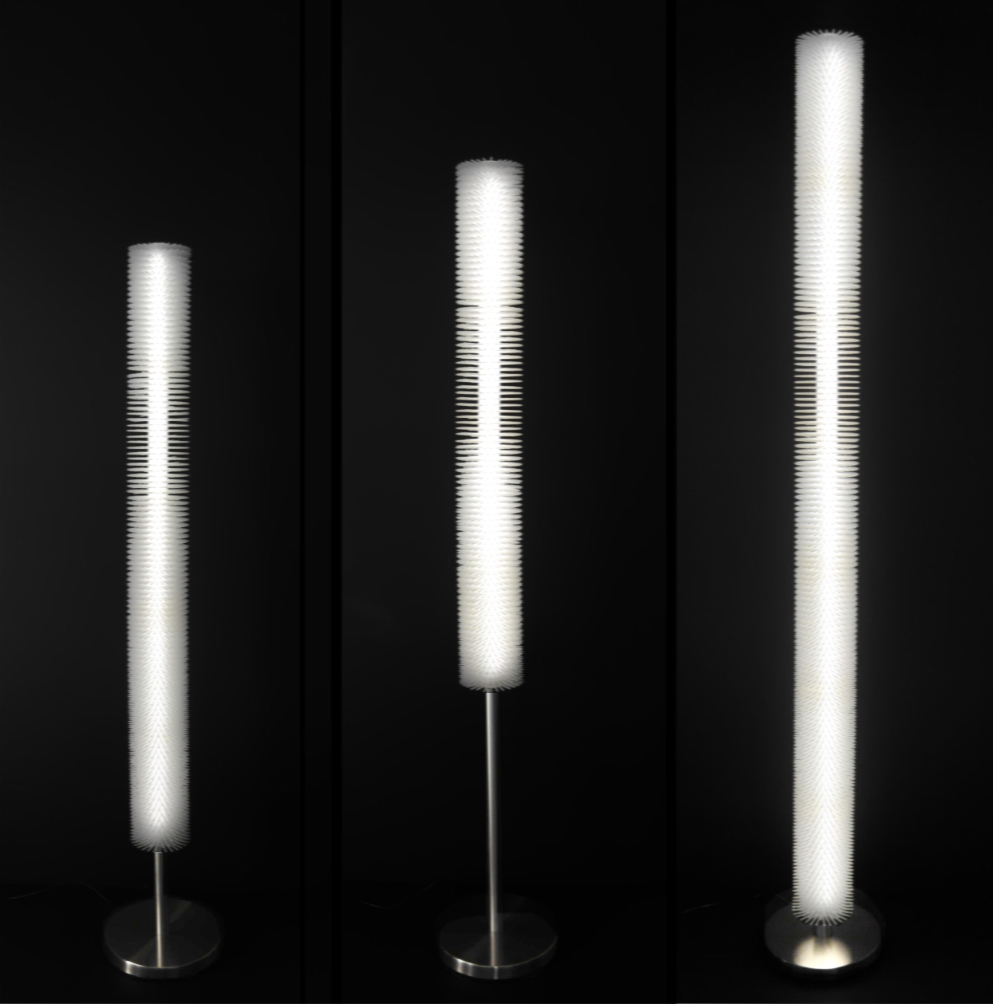

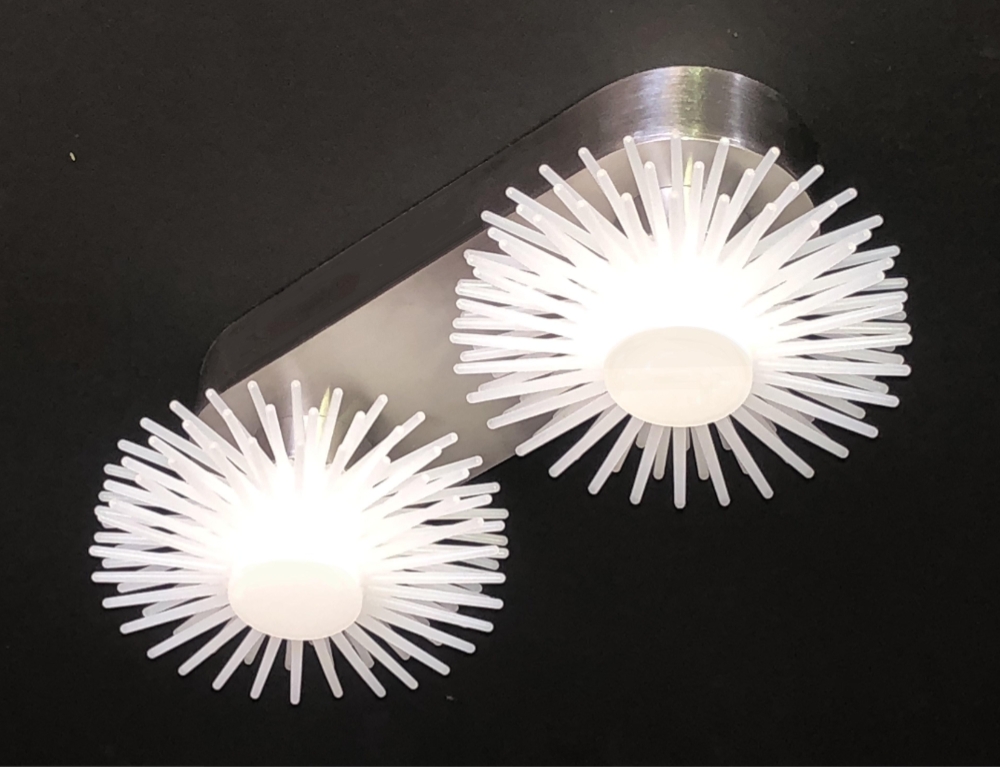

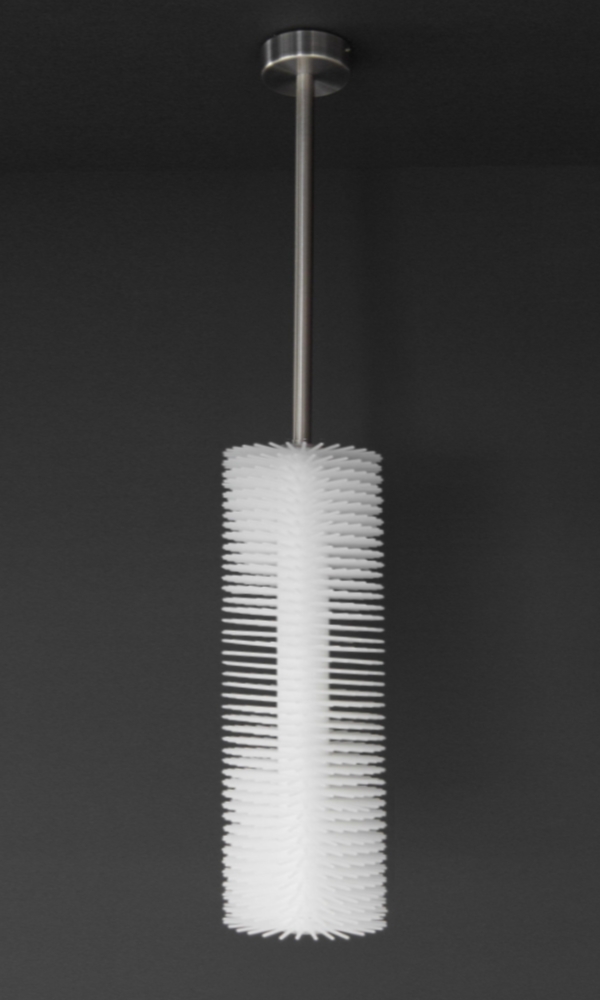

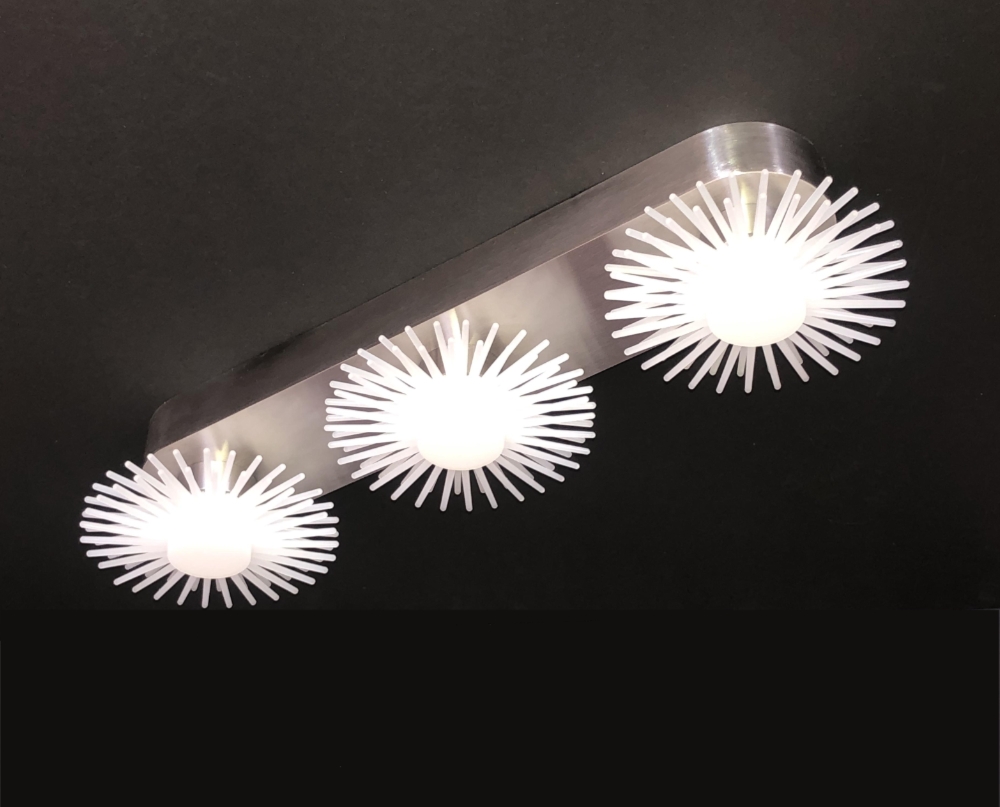

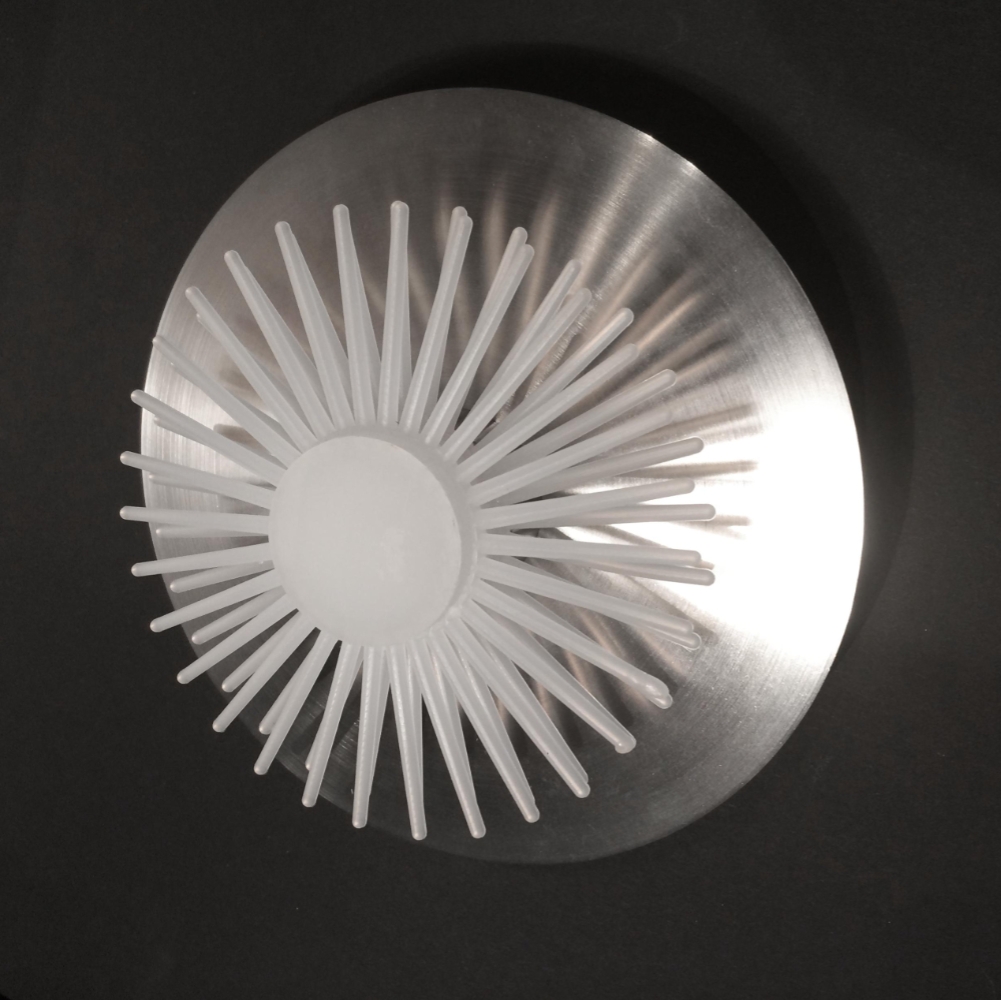

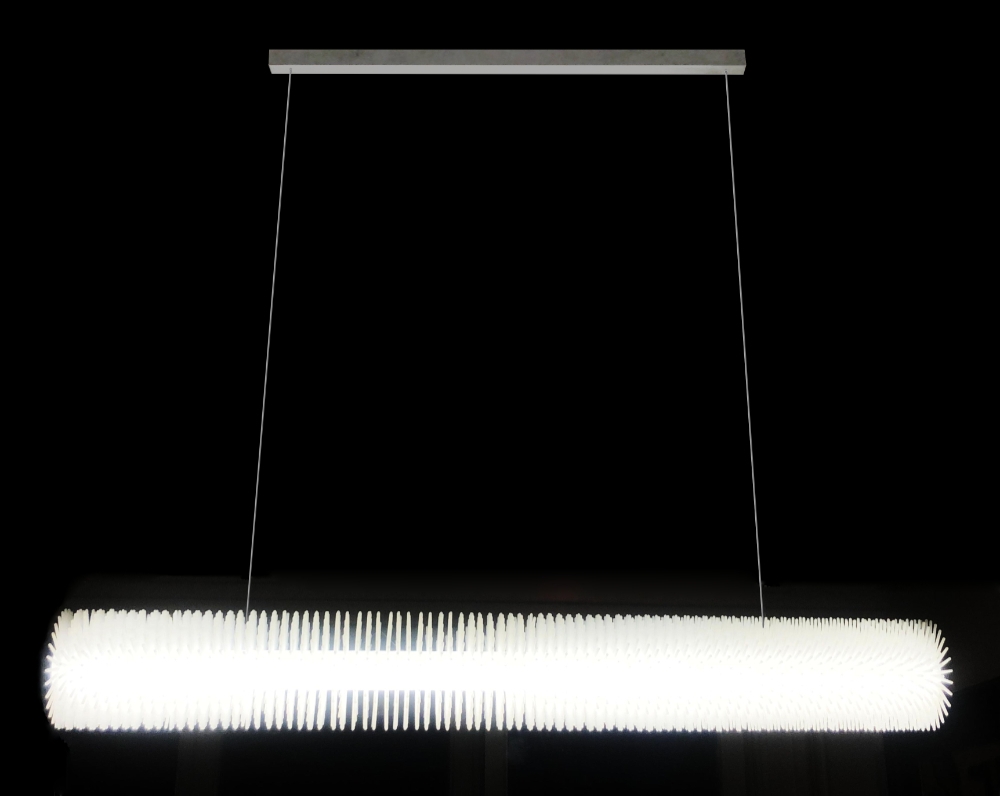

The LED star flower lamp family is made by stringing spiky white polystyrene discs on a plexiglass support tube. The cylinder has 125 mm diameter and 12 mm high polystyrene disks, the toothed rings form a dense cylinder with spikes by rotating the next element. By queing the elements , we get a differing long lighting cylinder . The lighting cylinders with a stainless base plate are made with stainless steel pipes of different diameters and lengths, different heights, from which different lamps can be made: vertical hanging lamp: D125x975mm; horizontal hanging lamp D125x970x745mm; Floor lamps D250 mm, total height 1260; 1560; 1740 mm, with lighting cylinders of different heights. The pressed discs of the table lamps are D110 mm, their total height is 627; 510 and 396 mm. The adapter is hidden on the ceiling in a cylindrical or rod-shaped stainless steel junction box. The 2- or 3-part discs are rotated by 90° and screwed to the base element with a turned stainless steel connector, or flower-like lamps with hinged stems are obtained. The lighting cylinders of the hanging, standing and table lamps have 12 W 4000 K LED strips on both sides of a 20x20 mm square aluminum tube. The point lamps are Luxeon TX Star 1 W, 4000 K LED; LED DC TRANSFORMER 1-4W, they work with SELV transformer. Their dimensions: D 125 x 68-78; 150; 378 mm; lamp 2,- 275; 3,- 424 mm, with reflector D 170x78 mm.
Sustainability Approach

The star flower LED lamp family is made by stringing spiky white polystyrene discs on a plexiglass support tube. There is a square aluminum tube inside the lighting cylinder, two LED strips are glued to it. There are polystyrene disks on the cylinder, by these elements sorted gives the lamps a varied appearance. LED lighting is an energy-saving electrical lighting method. With the help of the adjustable adapter, you can change the mood of the lighting. These adapters can be integrated into a plug-in or wall-mounted controllable switch, an adjustable wireless remote control. In this way, the basic light can be adjusted up to 25%, creating mood lighting. By using only a few elements: the spiky white polystyrene discs, the square aluminum tube with LED tape glued on both sides, and the stainless steel tubes of different sizes, we create a family of lamps with a varied appearance and shape.
Company Description

I and our company is an interier design company. We design the whole inside of the public buildings. like hotels, universities, libraries,
and other entertaining places, the interier of a VIP medical offices and meeting rooms, alecture halls and foyers in historic buildings,auditoriums and foyer of heritage and modern buildingaters, restaurants , receptionel places in residential buildings,
