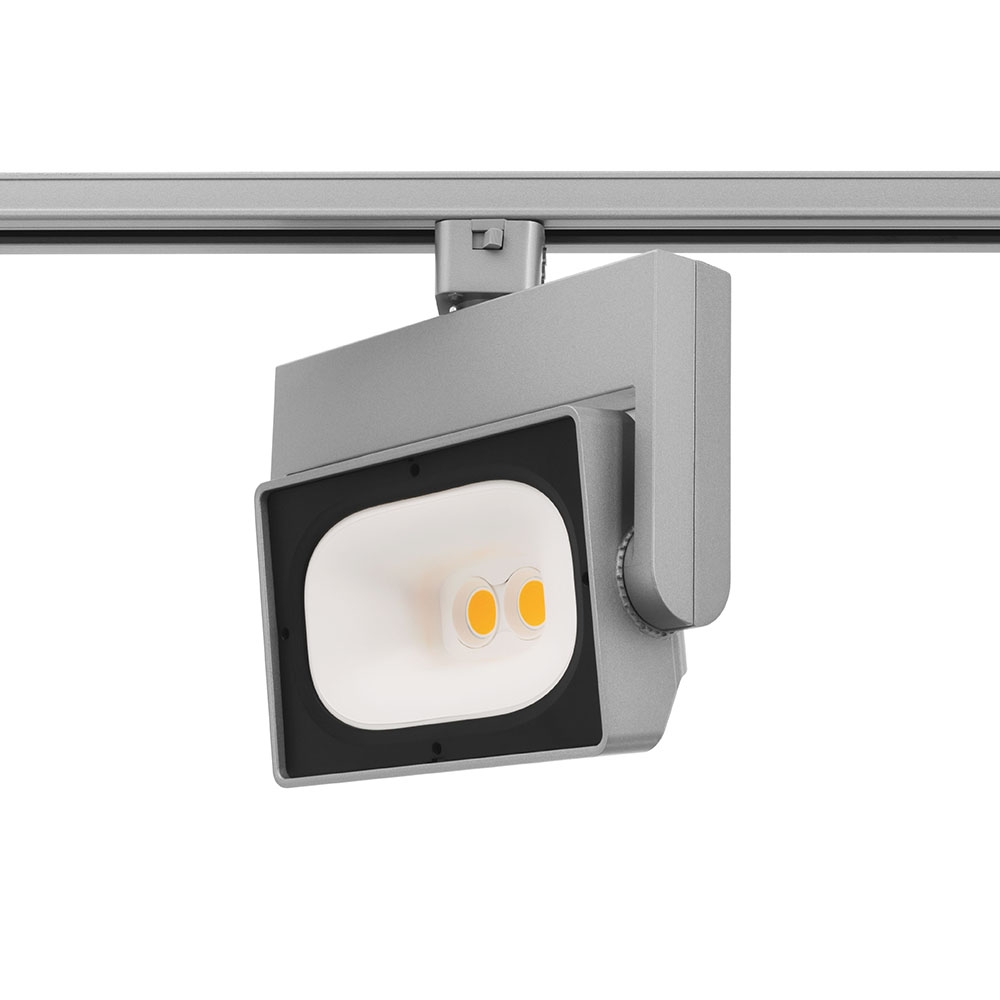

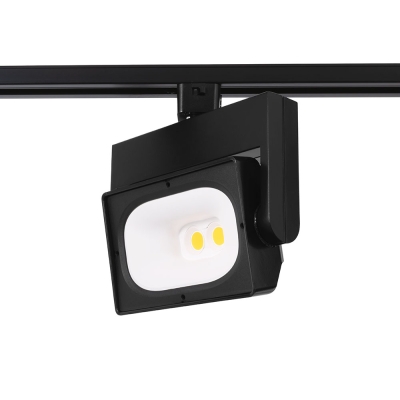

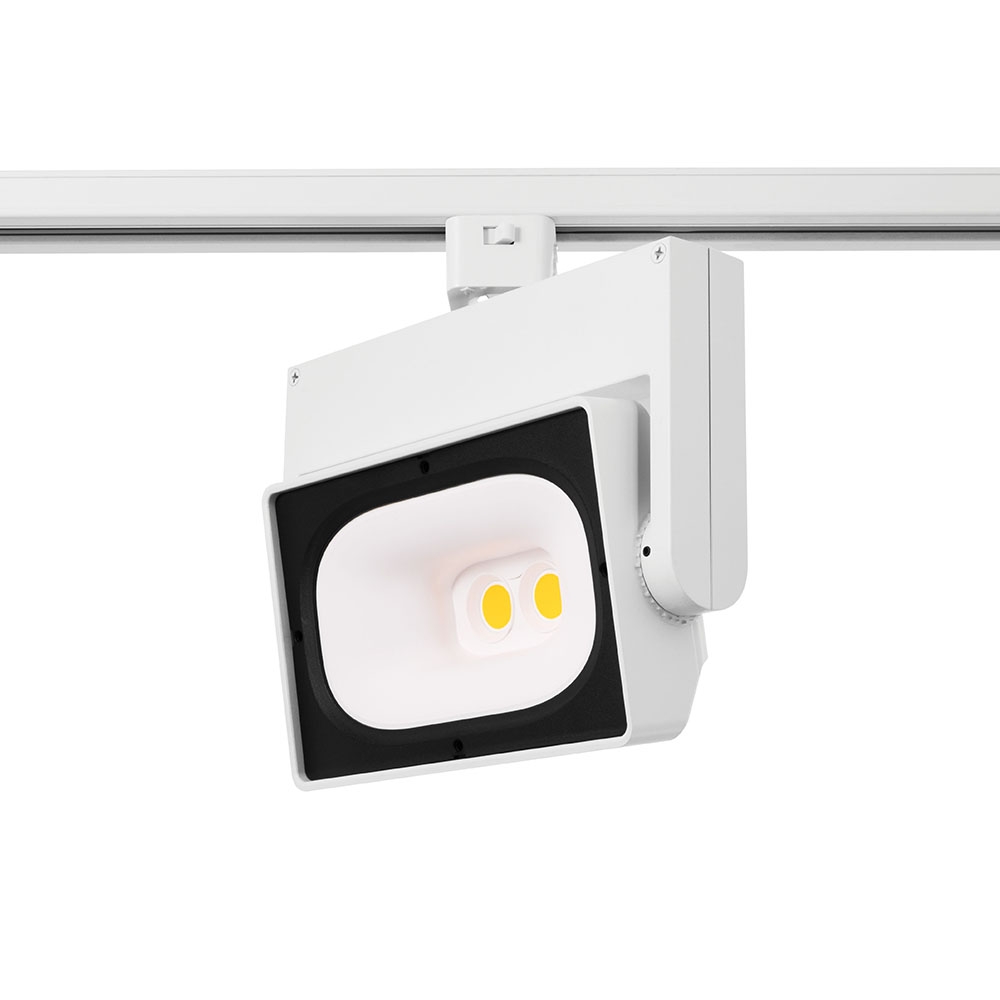

Juno T105xL Narrow Profile Wall Wash Track Fixture family

Lead Designers Fernando Sanchez, Joseph Branick

Entry Description

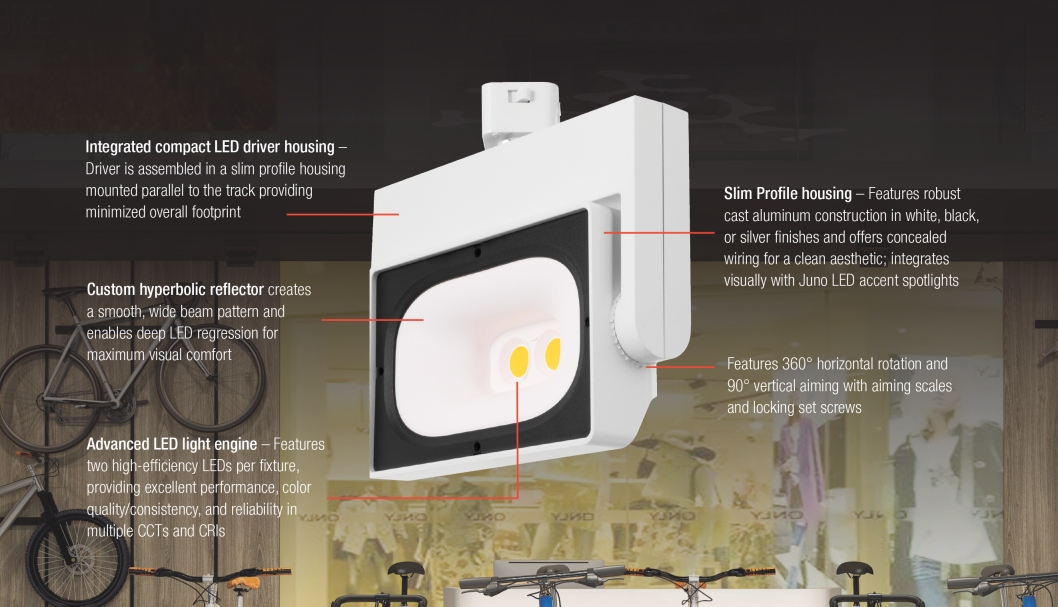

Match lighting performance to the size of the space and desired effect with a choice of 7 lumen packages ranging from 1700lms to 6300lms, and available in 80 or 90 CRI; CCTS include 2700K, 3000K, 3500K, and 4000K. Blast the room perimeter for visual impact or dim it to your preference to create a more balanced space. This new Narrow Profile LED Wall Wash Track Fixture family presents itself with an integrated, compact LED driver housings that powers an advanced light engine composed of two high-efficiency LEDs (per fixture), providing excellent performance, color quality and consistency as well as reliability with multiples CCTs/CRIs. A custom, patented hyperbolic reflector creates a smooth, wide beam pattern and enables deep LED regression for maximum visual comfort; minimal aperture brightness fights glare, improving user comfort. In addition, an impeccably designed center of gravity maintains perfect balance regardless of fixture aiming and prevents track from tilting or twisting. Fixtures feature a 360° horizontal rotation and 90° vertical aiming, and it is designed with vertical aiming scales and locking set screws. They can also be aimed straight down to provide widespread ambient lighting. An array of accessories (9) ranging from louvers to snoots as well as barndoors and lenses are also available.

Sustainability Approach

This new wall wash design has enabled us to reduce our carbon footprint by 30% from our current rack wall wash fixture family. This translates to 153 football fields of forest, an equivalent of 25,985 trees planted, and 4,549 less miles traveled. This product is designed to perform over a 50,000-hour rated life and the die-cast aluminum housing is recyclable at end of life.
