Prize(s) Winners in Energy Saving Lighting
Lighting Design/Product Company Light Plan Design and Architectural Visions
Lead Designers Bonny Whitehouse
Completion Date October 2013
Project Location Corlandt, New York, USA

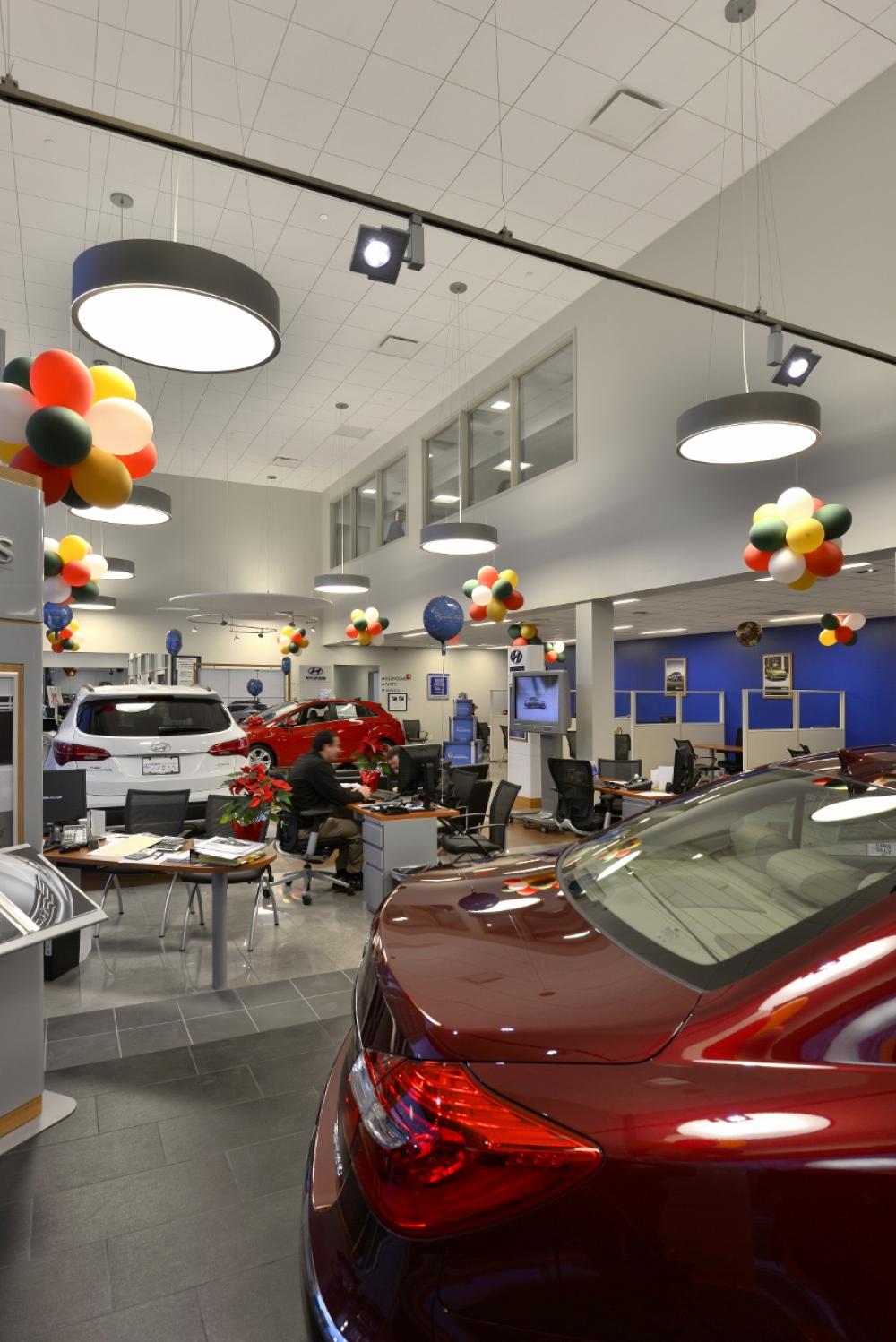

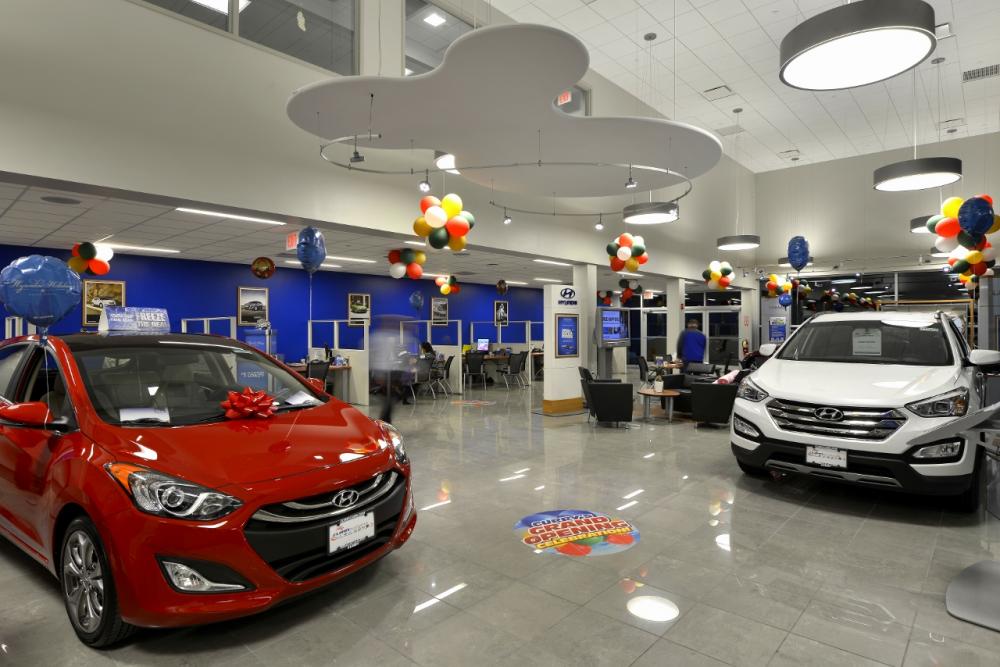

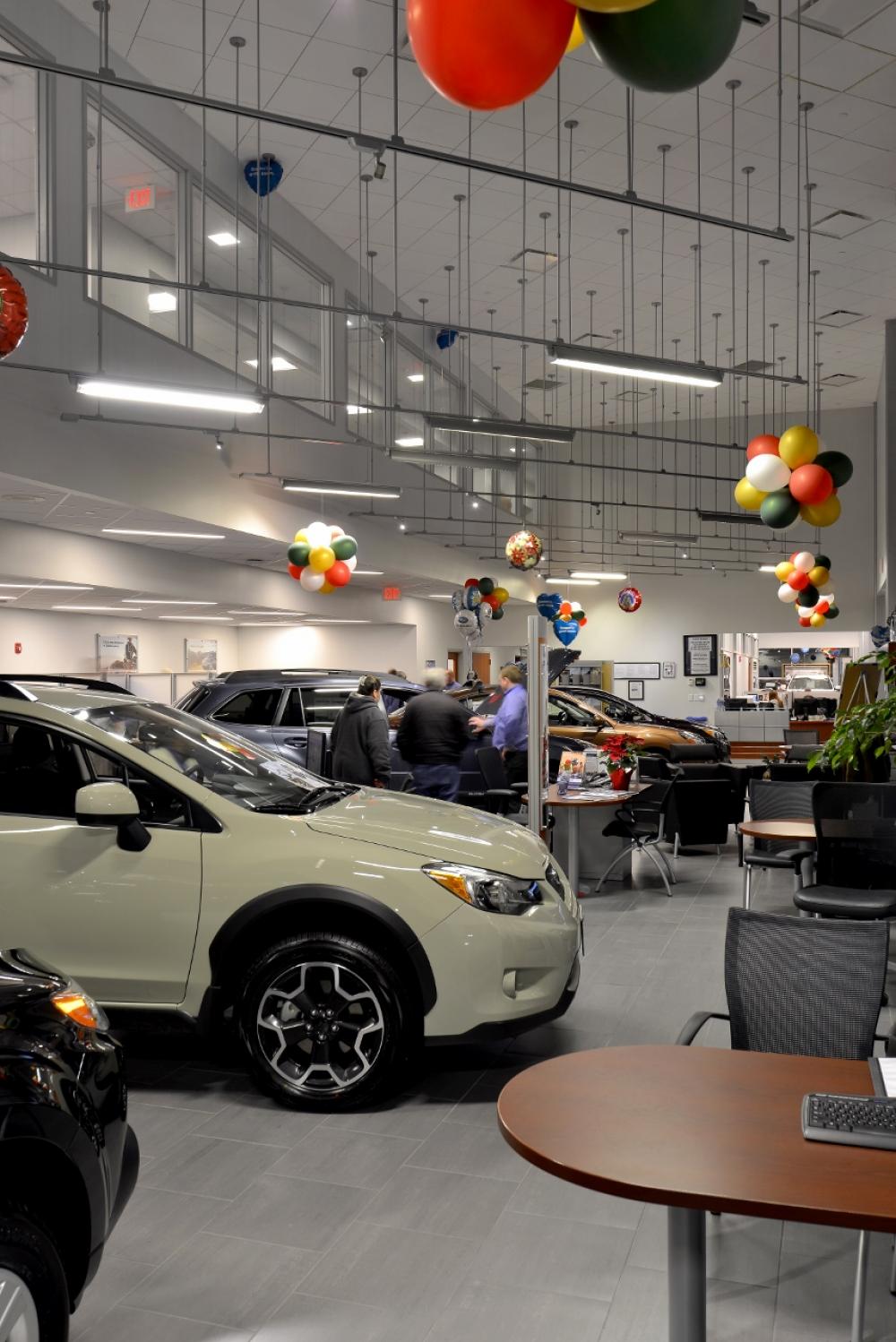

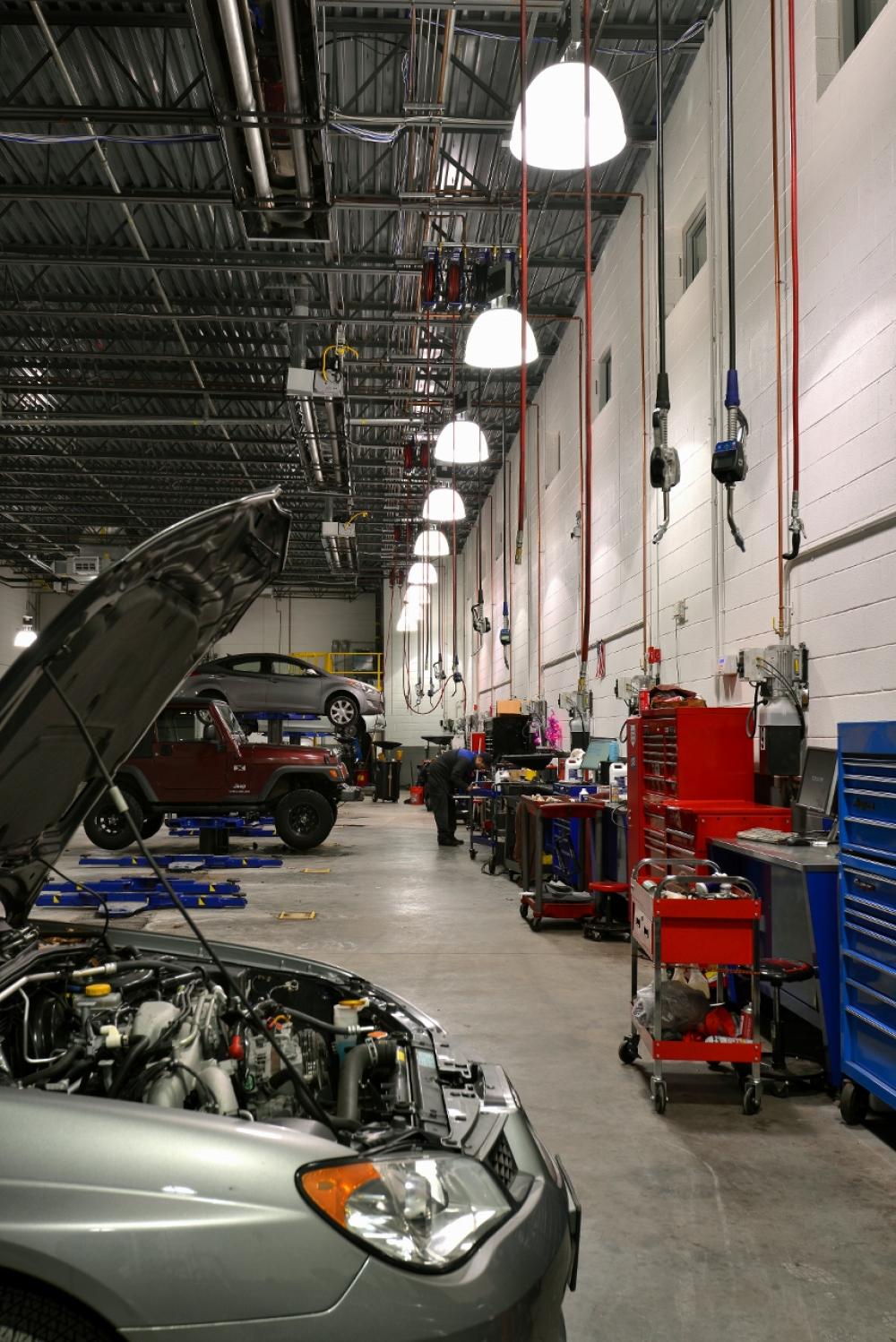

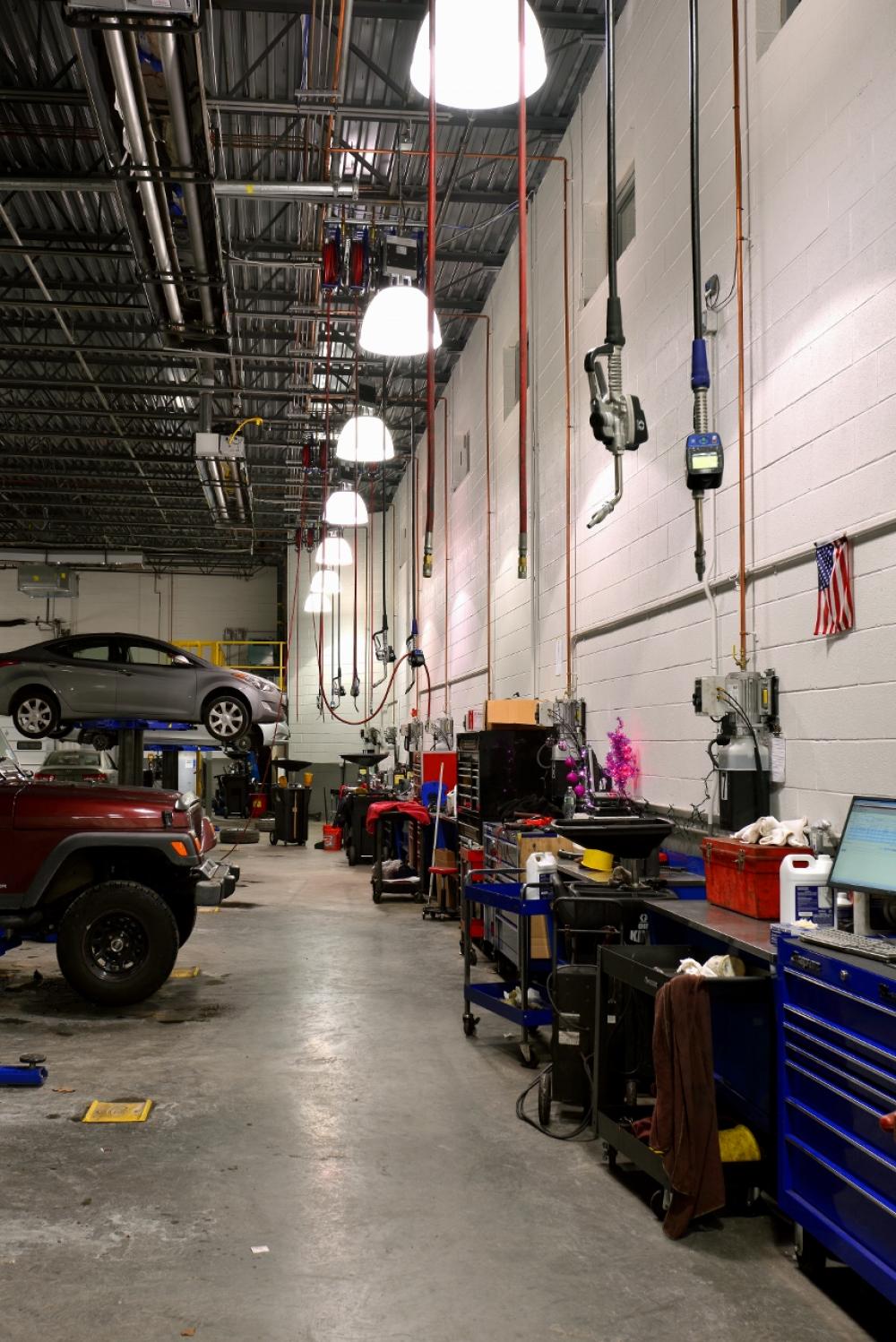

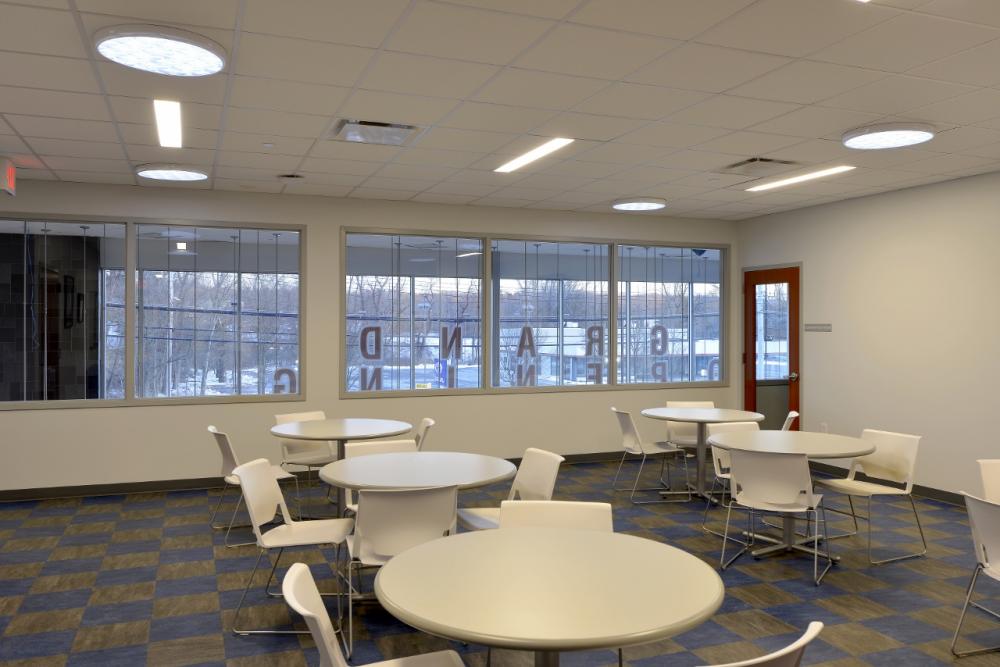

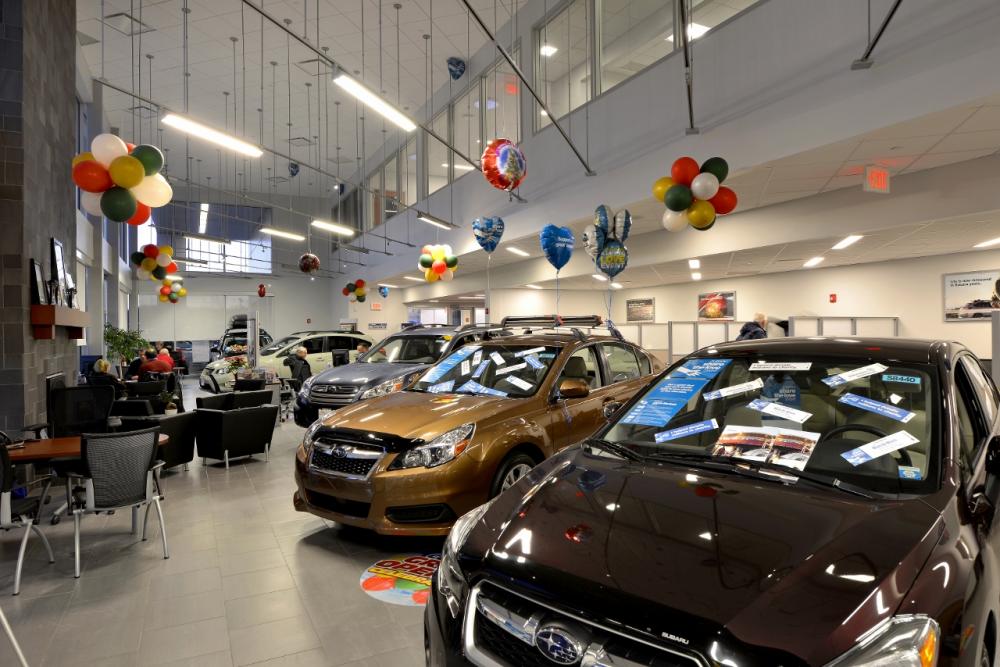

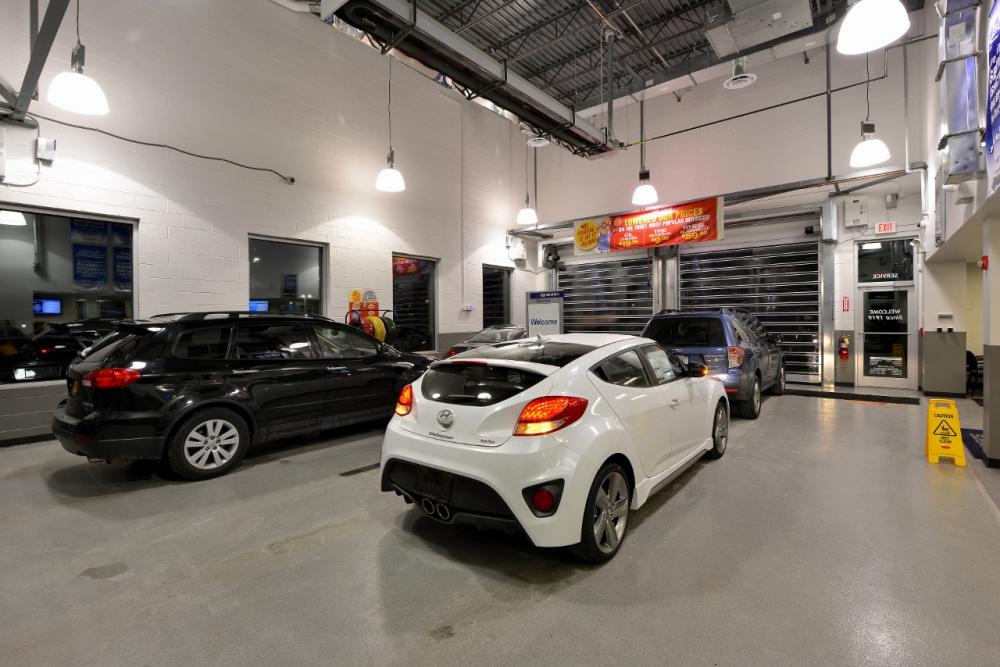

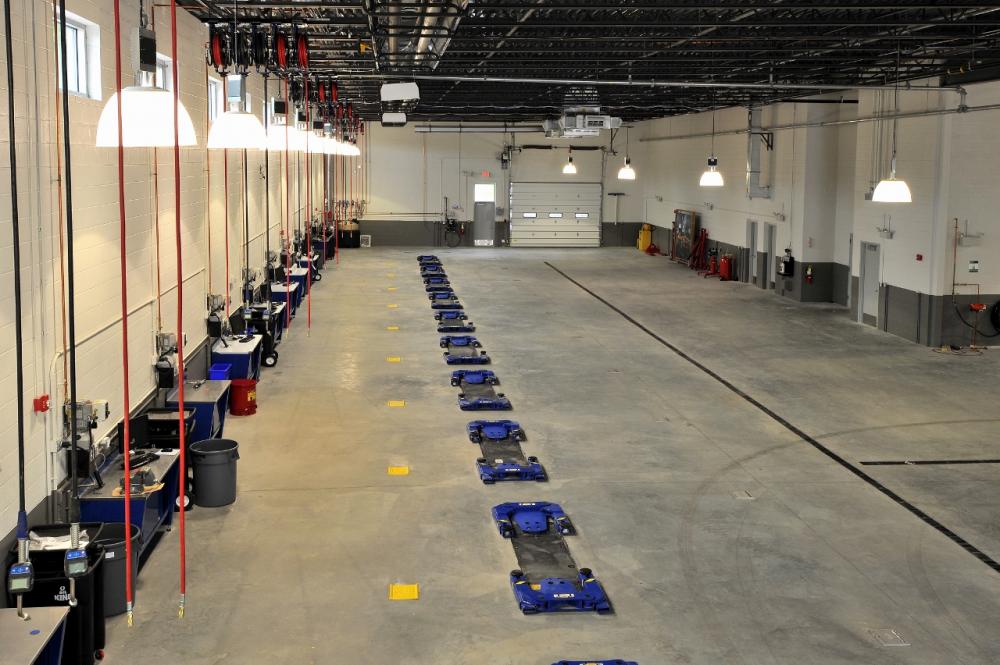

Entry DescriptionThe design team/owner were going for LEEDTM Silver. Each area of the two-story, 28,675-sqft car dealership—from showrooms, conference rooms, service area and café, including stairwells, janitor’s closet, restrooms and some areas with just one fixture—was broken out on a spreadsheet showing the 90.1 LPD recommendation, a design target 30% and 40% under 90.1. For example, the Subaru showroom uses 0.85 watts/sqft, half the level of 90.1; the customer lounge uses 0.40 watts/sqft, 66% below the 90.1 target; while the employee café uses 0.59 watts/sqft, 55% under 90.1. Rolling all the spaces together, the project shaves more than 30% in energy use off the 90.1 target. The project shaves more than 30% in energy use off the 90.1 target. Watts/sqft: 0.66 (more than 30% below ASHRAE/IES 90.1-2007) Illuminance Levels: showrooms = 60fc; customer lounge/children’s area = 45fc; employee café = 35fc; service drive = 54fc; service area = 48-53fc; offices = 52fc LEED Silver Registered
