D 100 WE System IP66

Lead Designers David Morgan

Entry Description

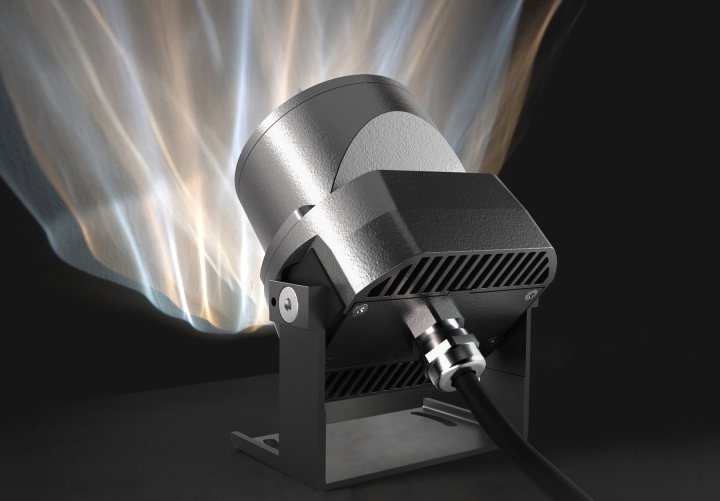

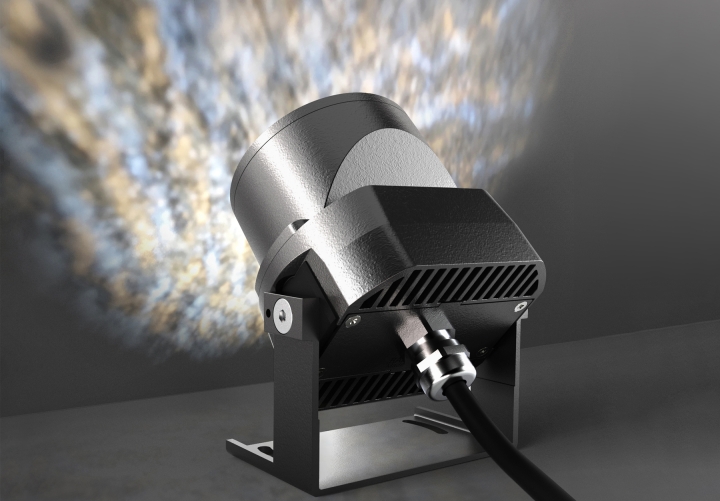

An exterior LED projector range, developed for use in landscape and architectural lighting applications requiring customisable, decorative, dynamic lit-effects.

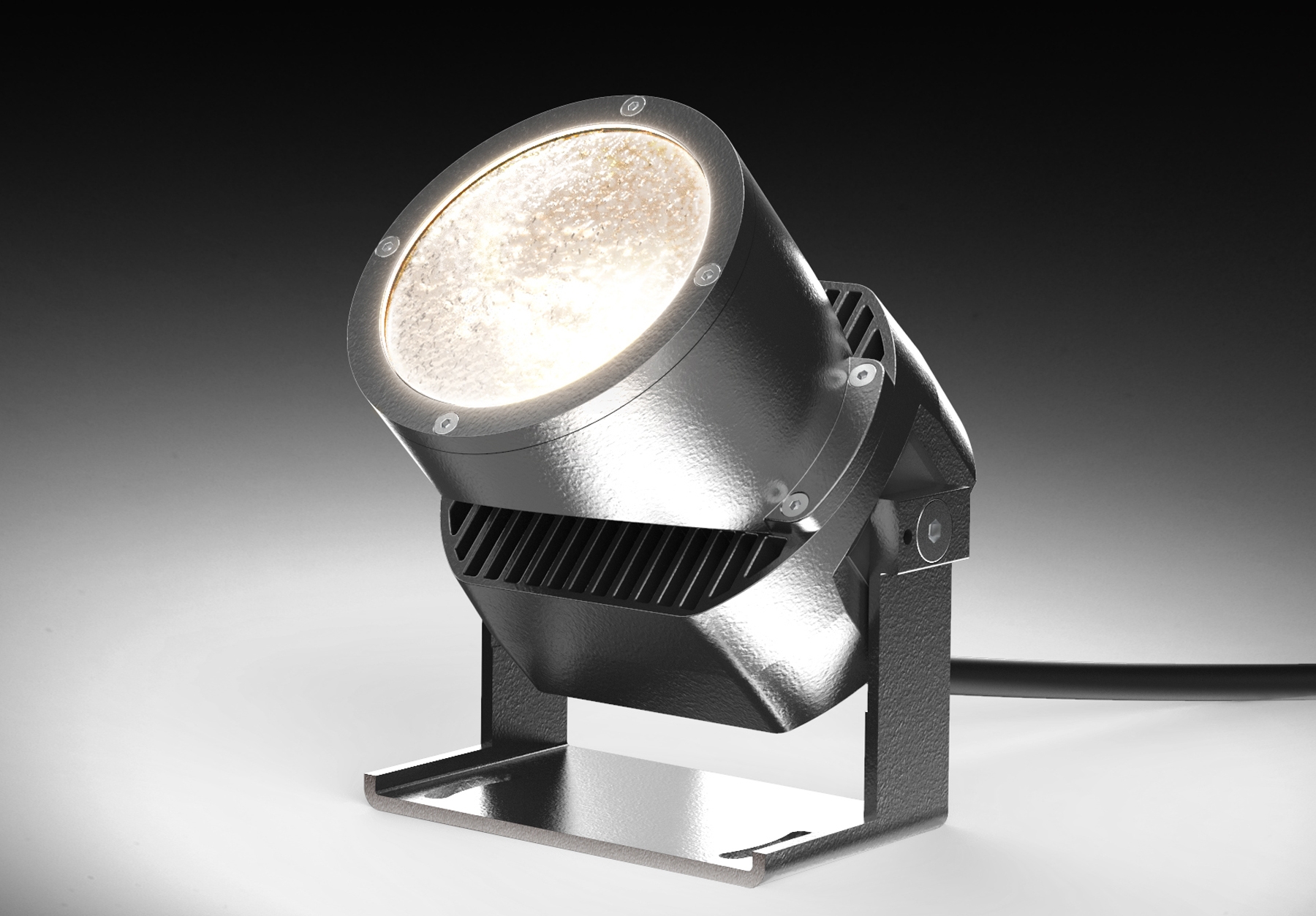

Each fixture incorporates an 8x LED light engine, one or two LV multi-channel DMX drivers and a textured glass panel optic. These can all be customised to create decorative, dynamic lit-effects tailored to suit project requirements.

The system does not rely on any moving parts and the LEDs are not run at full power for most of the dimming sequence, giving a long working life of up to 100,000 hours.

Each fixture can be run at up to 10W, providing up to 800 lumens, depending on the mix of LED colours and colour temperatures and the textured glass. The lumen output varies during the dimming control sequence.

Integral DMX LV driver or remote AC to DC DMX driver versions are available.

Rotatable in two axes using the adjustable angle brackets. Other mounting brackets are also available including custom designs to meet project requirements. Tree-strap and ground spike mounting options are available.

Various LED colours, colour temperatures and CRI options available. Different colour LEDs or white LEDs of different colour temperatures can be specified for each of the 8 LEDs within the light engine.

Custom anti-glare accessories can be specified - ensuring excellent visual comfort.

Any RAL paint colour finish to order.

Sustainability Approach

We design our systems for a working life of up to 30 years including replacement of light engines and integral drivers. Traditional construction methods allow our systems to be easily disassembled. 95% of our components can be reused indefinitely.
Easy on-site replacement of light engines is a key element of the design of all new Radiant systems.
Almost all Radiant products use aluminium core PCBs that can be recycled at the end of their life.
The D & 3D LED Flex systems use pressure die cast aluminium heatsinks, which waste less material during production than machined components.
Our die castings are currently produced with up to 75% recycled aluminium material. We aim to use only 100% recycled cast aluminium within 3 years.
All Radiant systems come with a 5-year guarantee, with a refurbishment service thereafter.
A TM66 analysis of each Radiant system can be prepared for your project.
