Prize(s) Honorable Mentions
Company Dialight Europe Ltd
Lead Designers Chris Capozzoli
Other Designer's names Paul Kuester
Photo Credits n/a
Other Credits n/a
Completion Date October 2021

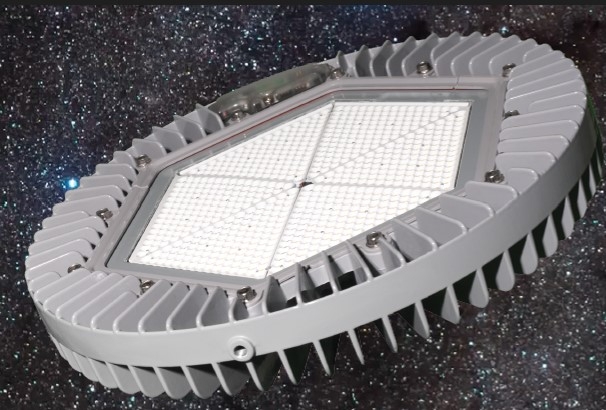

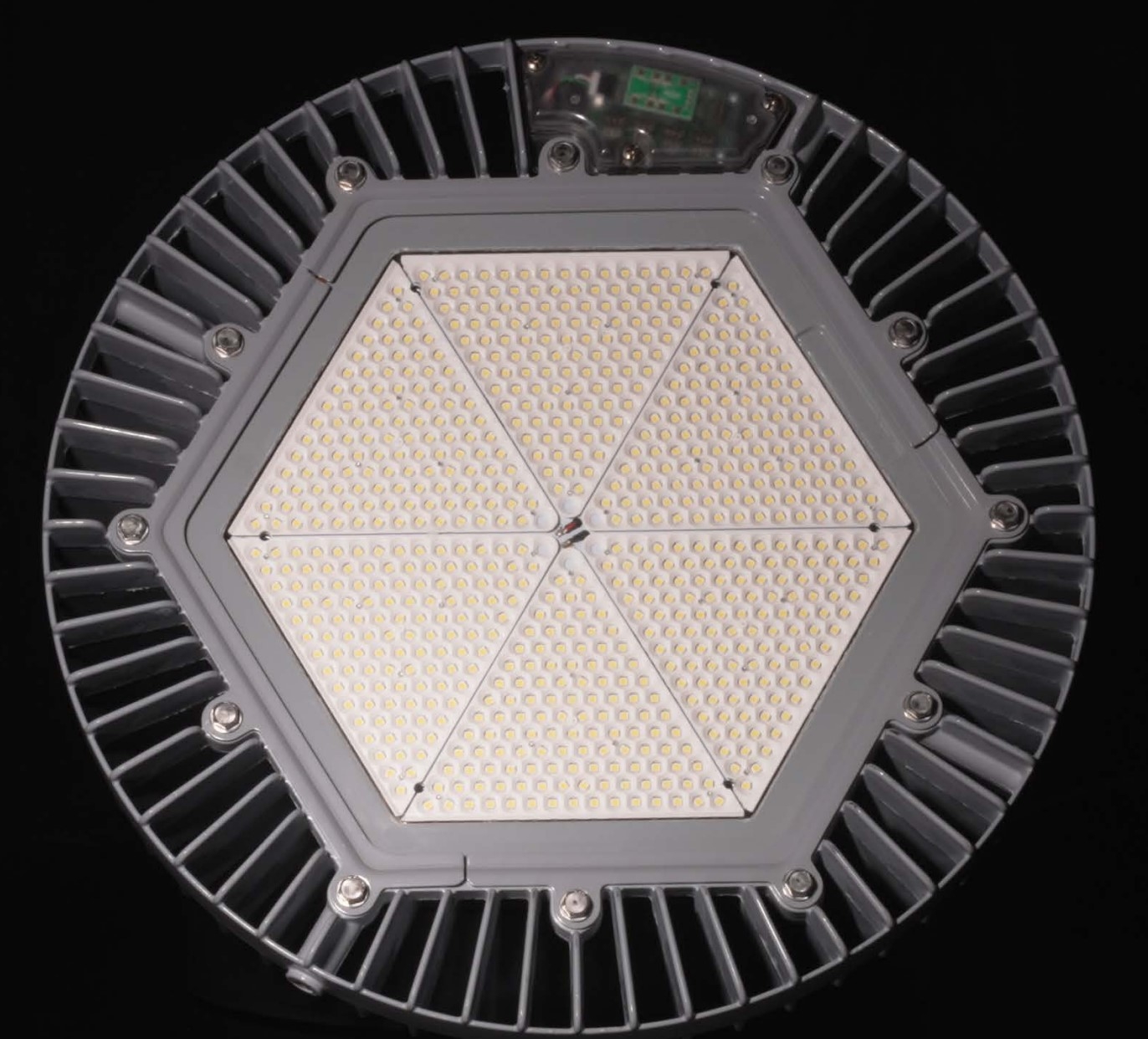

Entry DescriptionDialight launched the Ultra-Efficient Vigilant High Bay in October 2021 as an addition to its Vigilant family, featuring more efficient LEDs and drivers that enable luminaire efficacy of up to 200lm/W for the 19,100lm variant. Following this upgrade, the Vigilant family now offers between 12,100lm and 41,300lm with four types of available optical distributions; the combination of these options helps meeting a wider variety of requirements for industrial applications.
The housing of the high bay is made of copper free aluminium finished with dual coat finish consisting of sealed polyester topcoat and chemical-resistant epoxy primer; the product may be order with either polycarbonate or tempered glass lens. The fixture is IP66 rated for protection against dust and water ingress and IK10 rated for resistance to impact, it offers an operating temperature range -40°C to +65°C.

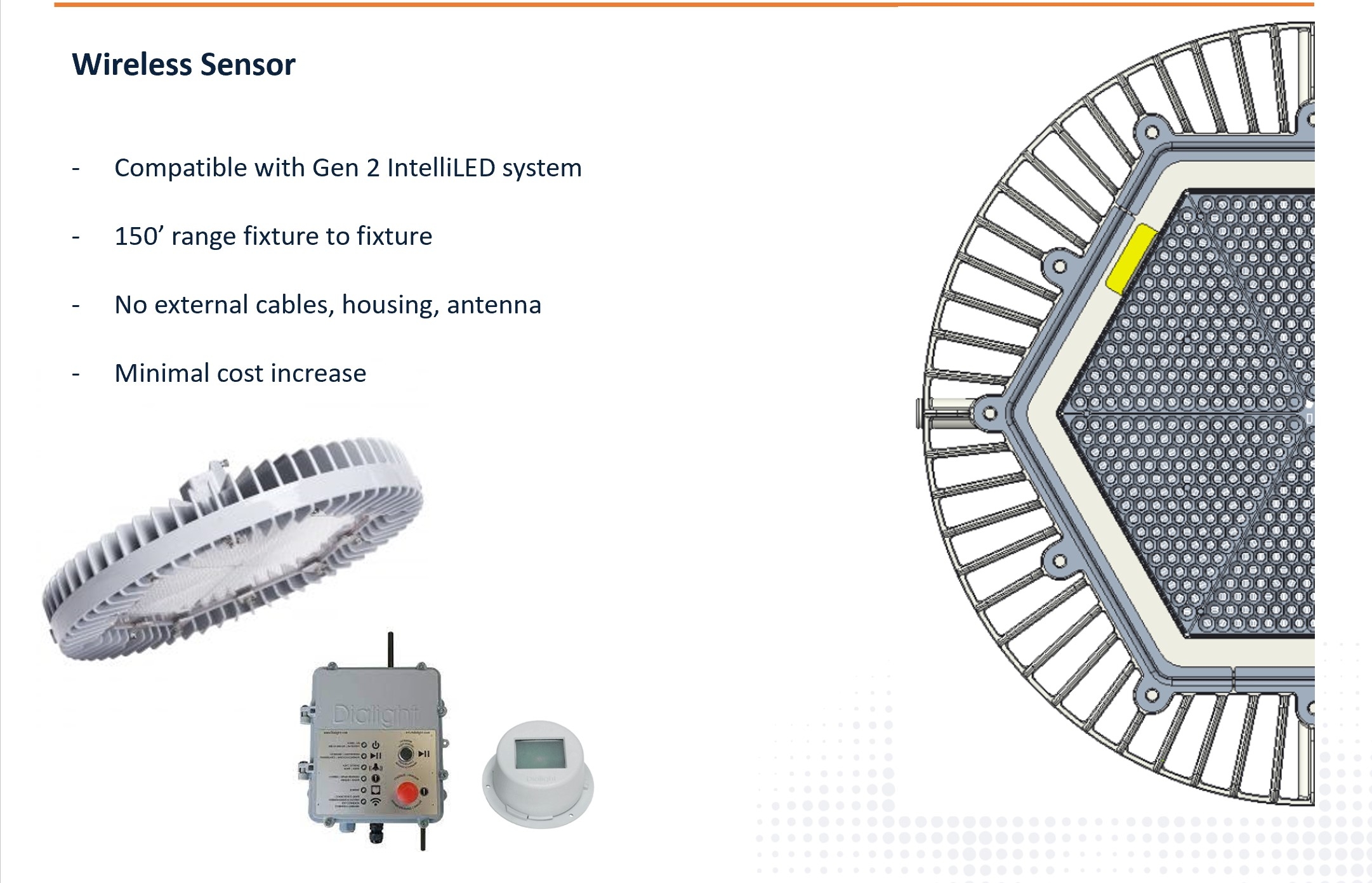

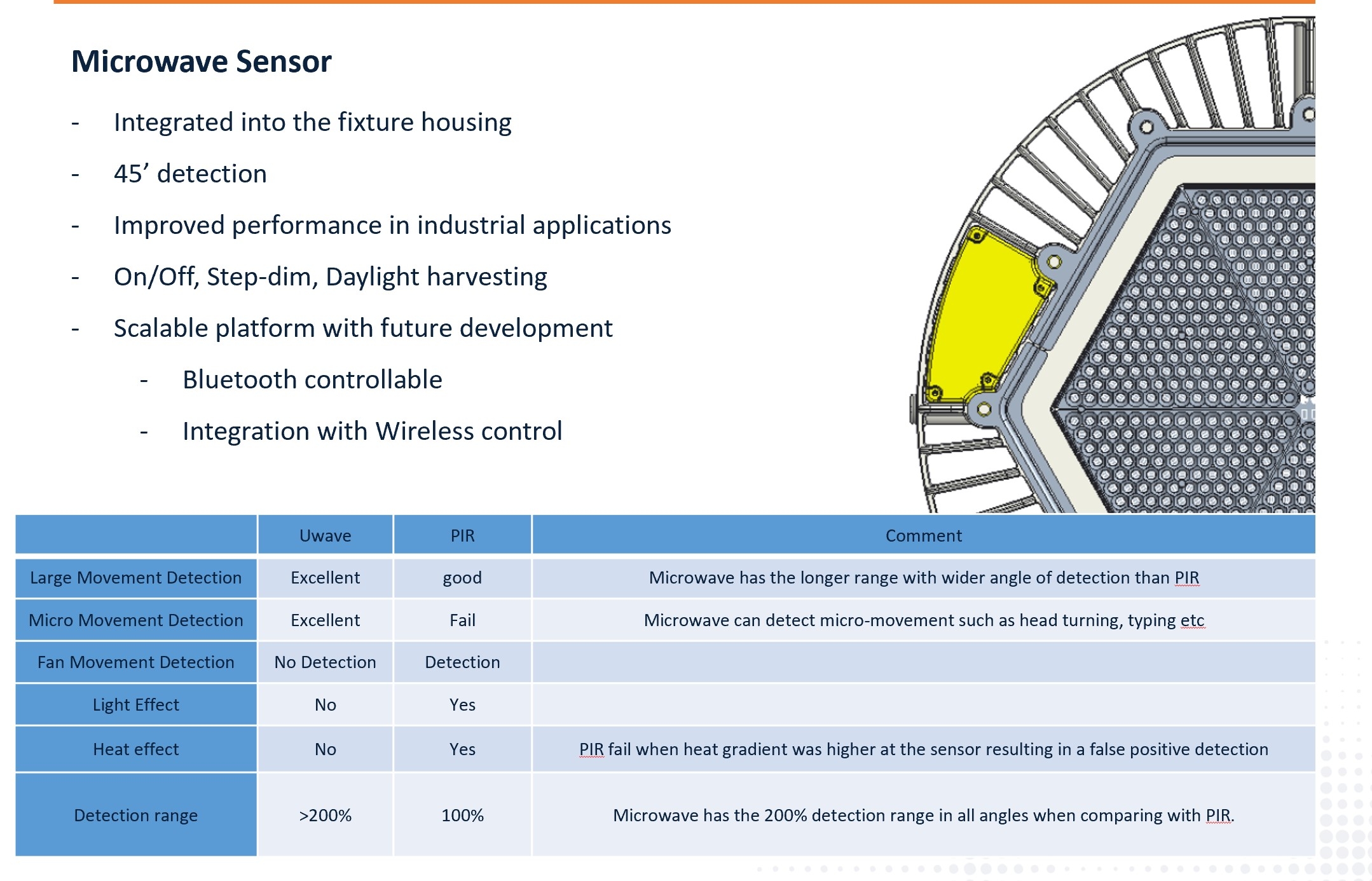

The Ultra-Efficient Vigilant High Bay is available with an adjustable-range microwave occupancy sensor, a technology which is uniquely suited for industrial applications for its ability to detect movement over and around obstructions that commonly hamper other sensors. This fixture is also available with fully integrated wireless controls, with the antenna and other components housed inside the fitting.
